Installation [08/2016 - ]: Procedure

  1. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install a new water pump gasket and the engine water pump assembly with the 7 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Install the wire harness bracket with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Attach the clamp of the wire harness to the wire harness bracket.
  2. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY
    1. w/ Cover:

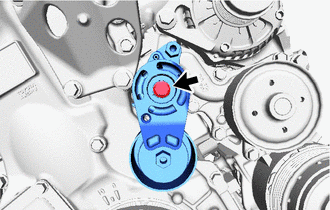

      1. Install the V-ribbed belt tensioner assembly with the bolt.

        Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

        GTY700518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

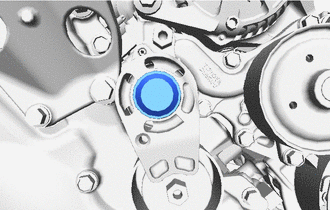

      2. Install the dust cover.
        GTY733994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Cover:
      1. Install the V-ribbed belt tensioner assembly with the bolt.

        Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

        GTY314503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL GENERATOR ASSEMBLY

    Refer to INSTALLATION [12/2012 - ]

  4. ADD ENGINE COOLANT

    See step  3

  5. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 79

  7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5
