Removal [12/2012 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2012 - ]

  2. REMOVE PCV VALVE
    1. Slide the clamp and disconnect the No. 2 PCV hose from the PCV valve.
      GTY307640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

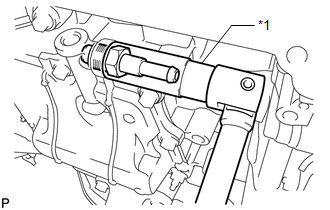

    2. Using a 19 mm deep socket wrench, remove the PCV valve.
      GTY363203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 19 mm Deep Socket Wrench
