Removal [12/2012 - ]: Procedure

  1. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Refer to REMOVAL [12/2012 - 10/2015] , or refer to REMOVAL [10/2015 - ]

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 6 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - ]

  3. REMOVE SEAT HEATER SWITCH LH

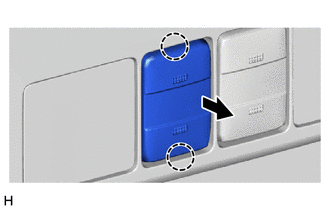

    1. Detach the 2 claws to remove the seat heater switch LH.
      GTY374874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SEAT HEATER SWITCH RH

    HINT:

    Use the same procedure described for the LH side.
