Components [12/2012 - ]: Illustration

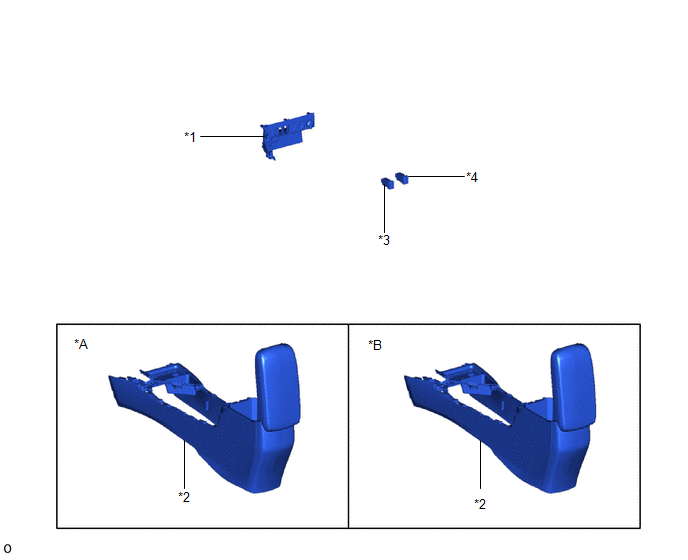

GTY362862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A except Slide Console Type *B for Slide Console Type
*1 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL *2 REAR CONSOLE BOX SUB-ASSEMBLY
*3 SEAT HEATER SWITCH LH *4 SEAT HEATER SWITCH RH
