Removal [12/2012 - 08/2016]: Procedure

  1. REMOVE REAR SEAT FRONT BRACKET COVER RH

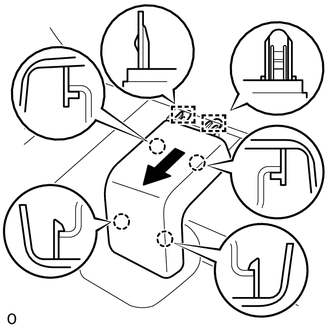

    1. Using a screwdriver, detach the 4 claws.
      GTY370906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 guides and remove the rear seat front bracket cover RH in the direction shown by the arrow in the illustration.
  2. REMOVE REAR SEAT NO. 2 LEG SIDE COVER
    1. Using a screwdriver, detach the 4 claws to remove the rear seat No. 2 leg side cover.

      HINT:

      Tape the screwdriver tip before use.

      GTY370905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT ASSEMBLY RH
    1. Lift up the seat track adjusting handle and move the seat to the rearmost position.

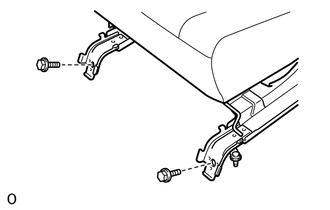

    2. Remove the 2 bolts on the front side of the seat.
      GTY370171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Lift up the seat track adjusting handle and move the seat to the foremost position.

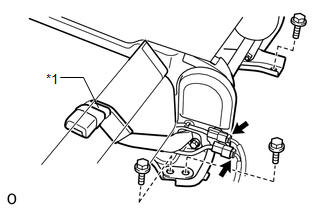

    4. GTY380506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rubber Band

      w/ Seat belt warning system:

      Disconnect the 2 connectors.

    5. Detach the rubber band.
    6. Remove the 3 bolts on the rear side of the seat.
    7. Fully tilt the seatback forward. Then remove the seat.
      NOTE:

      Be careful not to damage the vehicle body.

  4. REMOVE SEAT LEG BRACKET
    GTY370169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the clamp and remove the 4 bolts.
    2. Detach the guide to remove the seat leg bracket.
