Reassembly [12/2012 - 08/2016]: Procedure

  1. INSTALL SEPARATE TYPE REAR SEATBACK COVER
    1. Set the separate type rear seatback cover in place.

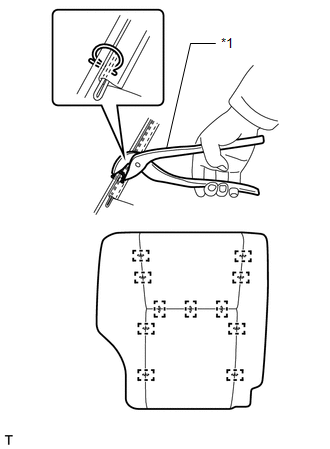

      GTY375178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
    2. Using hog ring pliers, install the separate type rear seatback cover to the rear seat cushion pad RH with 11 new hog rings.
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
    3. Using hog ring pliers, install 2 new hog rings.

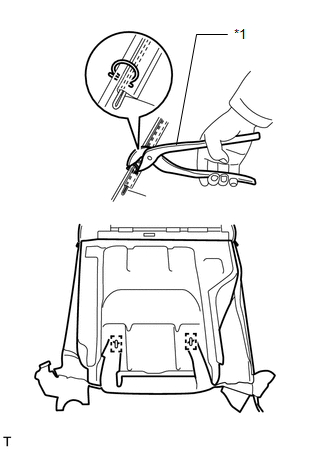

      GTY361544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
    4. Install the separate type rear seatback cover (with pad) to the rear seat cushion frame sub-assembly RH.
    5. Attach the 2 clamps.
  2. INSTALL REAR SEAT HEADREST SUPPORT
    1. Attach the 4 claws to install the 2 rear seat headrest supports.
  3. INSTALL REAR SEATBACK BOARD RH
    1. Attach the clamp and 5 claws to install the rear seatback board RH.
    2. Using hog ring pliers, install 4 new hog rings and attach the 2 pieces of fastening tape.

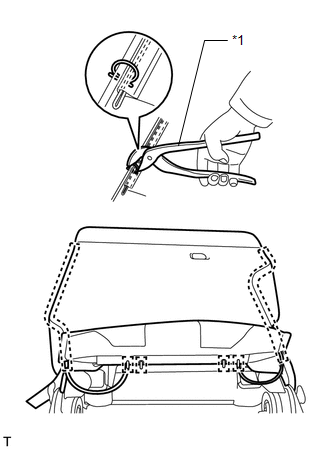

      GTY366937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
  4. INSTALL NO. 1 SEATBACK ASSEMBLY RH
    1. Install the No. 1 seatback assembly RH to the rear seat reclining adjuster assembly RH with the 2 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  5. INSTALL REAR SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 1

  6. INSTALL REAR SEAT CENTER LAP TYPE BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  7. INSTALL NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY

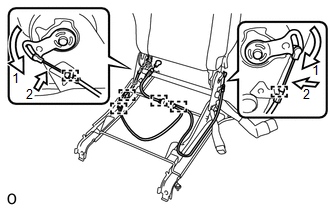

    1. GTY364589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the 2 cables in the order shown in the illustration.

    2. Attach the 2 clamps of the cable ends.
    3. Attach the 4 clamps and install the No. 2 seat adjuster control cable assembly.
  8. INSTALL REAR SEAT REAR CUSHION MOULDING RH
    1. Attach the clamp and claw to install the rear seat rear cushion moulding RH.
    2. w/ Seat Belt Warning System:

      Attach the 2 clamps.

  9. INSTALL REAR SEAT CUSHION MOULDING RH
    1. Attach the 2 clamps and claw to install the rear seat cushion moulding RH.
  10. INSTALL REAR SEAT COVER
    1. Attach the claw to install the rear seat cover.
    2. Install the clip and screw.
  11. INSTALL REAR SEATBACK COVER RH
    1. Attach the claw to install the rear seatback cover RH.
    2. Install the clip and screw.
  12. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER
    1. Set the separate type rear seat cushion cover in place.
    2. Using hog ring pliers, install the separate type rear seat cushion cover to the rear seat cushion pad RH with 13 new hog rings.

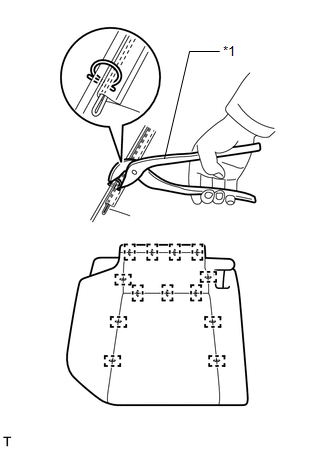

      GTY383699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.
    3. Using hog ring pliers, install a new hog ring.

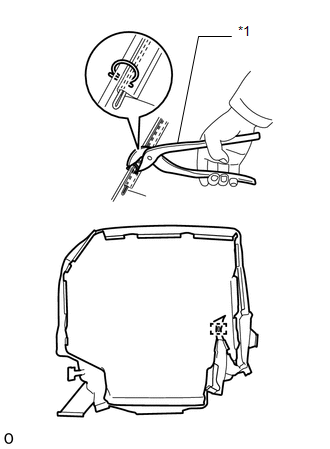

      GTY378535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.
    4. Install the separate type rear seat cushion cover (with pad) to the rear seat cushion frame sub-assembly.
    5. Attach the 18 hooks.
  13. INSTALL NO. 1 SEAT CUSHION ASSEMBLY RH
    1. Install the No. 1 seat cushion assembly RH with the 2 bushes and 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Attach the 2 claws to install the rear seatback cover.
    3. Install the 3 clamps.
    4. Connect the cable in the order shown in the illustration.
      GTY374680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the clamp of the cable end.
    6. Install the 2 bushes and 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  14. INSTALL REAR SEAT NO. 2 CUSHION HINGE COVER
    1. Attach the clamp and 4 claws to install the rear seat No. 2 cushion hinge cover.
    2. Attach the clamp.
  15. INSTALL REAR SEAT NO. 1 CUSHION HINGE COVER
    1. Attach the clamp and 4 claws to install the rear seat No. 1 cushion hinge cover.
  16. INSTALL RECLINING ADJUSTER RELEASE HANDLE RH
    1. Install the reclining adjuster release handle RH with the 3 screws.
  17. INSTALL REAR SEAT COVER CAP RH
    1. Attach the 3 claws to install the rear seat cover cap RH.
  18. INSTALL REAR SEAT HEADREST ASSEMBLY
