Reassembly [12/2012 - 08/2016]: Procedure

  1. INSTALL SEPARATE TYPE REAR SEATBACK COVER
    1. Set the separate type rear seatback cover in place.

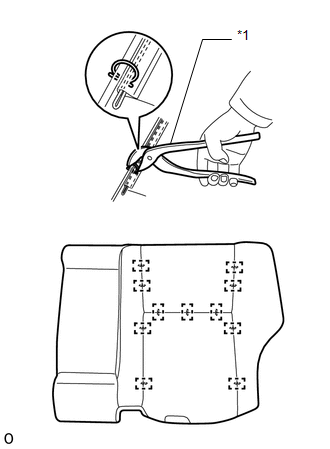

      GTY372766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
    2. Using hog ring pliers, install the separate type rear seatback cover to the separate type rear seatback pad with 11 new hog rings.
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
    3. Using hog ring pliers, install 5 new hog rings.

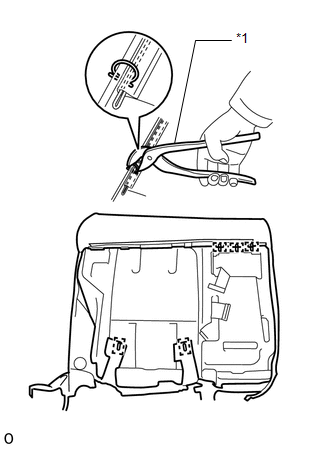

      GTY368280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
    4. Install the separate type rear seatback cover (with pad) to the rear seatback frame sub-assembly LH.
    5. Attach the 9 clamps.
    6. Attach the 8 claws to install the 4 rear seat headrest supports.
  2. INSTALL REAR SEATBACK BOARD LH
    1. Attach the clamp and 7 claws to install the rear seatback board LH.
    2. Using hog ring pliers, install 6 new hog rings and attach the 2 pieces of fastening tape.

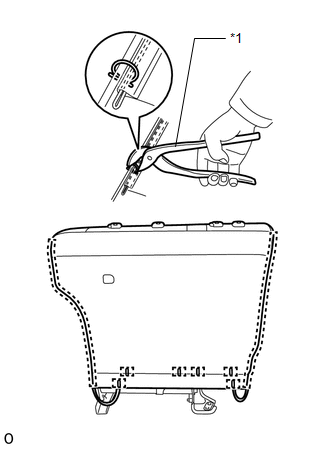

      GTY361079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seatback cover.
  3. INSTALL REAR NO. 1 SEATBACK ASSEMBLY LH
    1. Install the No. 1 seatback assembly LH to the rear seat reclining adjuster assembly LH with the 3 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  4. INSTALL REAR SEAT INNER BELT ASSEMBLY LH
    1. Install the rear seat inner belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  5. INSTALL NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY
    1. Install the No. 2 seat adjuster control cable assembly in the order shown in the illustration.

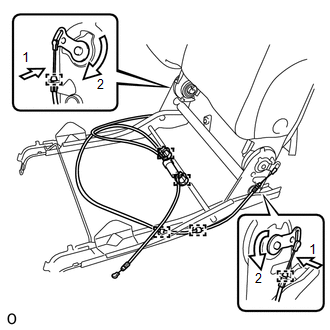

      GTY362517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 clamps of the cable ends.
    3. Attach the 4 clamps.
  6. INSTALL REAR SEAT REAR CUSHION MOULDING LH
    1. Attach the clamp and claw to install the rear seat rear cushion moulding LH.
    2. w/ Seat Belt Warning System:

      Attach the 2 clamps.

  7. INSTALL REAR SEATBACK COVER LH
    1. Attach the claw to install the rear seatback cover LH.
    2. Install the clip and screw.
  8. INSTALL REAR SEAT COVER LH
    1. Attach the claw to install the rear seat cover LH.
    2. Install the clip and screw.
  9. INSTALL REAR SEAT CUSHION MOULDING LH
    1. Attach the 3 hooks and claw to install the rear seat cushion moulding LH.
  10. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER
    1. Set the separate type rear seat cushion cover in place.

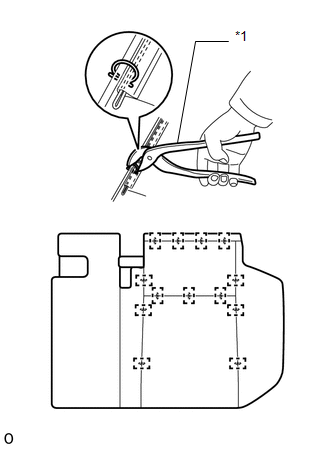

      GTY378038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
    2. Using hog ring pliers, install the separate type rear seat cushion cover to the rear seat cushion pad LH with 13 new hog rings.
      NOTE:
      • Be careful not to damage the separate type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.
    3. Using hog ring pliers, install 5 new hog rings.

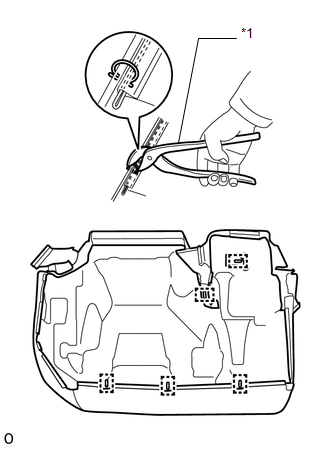

      GTY382255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hog Ring Pliers
      NOTE:
      • Be careful not to damage the separate type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type rear seat cushion cover.
    4. Install the separate type rear seat cushion cover (with pad) to the rear seat spring assembly with the 20 hooks.
  11. INSTALL REAR NO. 1 SEAT CUSHION ASSEMBLY LH
    1. Install the No. 1 seat cushion assembly LH with the 2 bushes and 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Attach the 2 claws to install the rear seatback cover.
    3. Install the 3 clamps.
    4. Connect the cable in the order shown in the illustration.
      GTY383275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the clamp of the cable end.
    6. Install the 2 bushes and 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  12. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH
    1. Install the reclining adjuster release handle LH with the 3 screws.
  13. INSTALL REAR SEATBACK NO. 1 BOARD CAP
    1. Attach the 3 claws to install the rear seatback No. 1 board cap.
  14. INSTALL REAR SEAT NO. 1 CENTER ARMREST PLATE
    1. Install the rear seat No. 1 center armrest plate.
  15. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
    1. Install the rear seat center armrest assembly with the washer and bolt.
  16. INSTALL REAR SEAT LOWER CUSHION HINGE COVER LH
    1. Attach the clamp and 4 claws to install the rear seat lower cushion hinge cover LH.
  17. INSTALL REAR SEAT NO. 3 CUSHION HINGE COVER
    1. Attach the clamp and 4 claws to install the rear seat No. 3 cushion hinge cover.
    2. Attach the clamp.
  18. INSTALL CENTER ARMREST HINGE COVER RH
    1. Attach the clamp to install the center armrest hinge cover RH.
  19. INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  20. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
  21. INSTALL REAR SEAT HEADREST ASSEMBLY
