Disassembly [12/2012 - 08/2016]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
  2. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
  3. REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  4. REMOVE CENTER ARMREST HINGE COVER RH
    1. Return the seatback to the upright position.
    2. Detach the clamp to remove the center armrest hinge cover RH.
      GTY370167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT NO. 3 CUSHION HINGE COVER
    1. Detach the clamp.

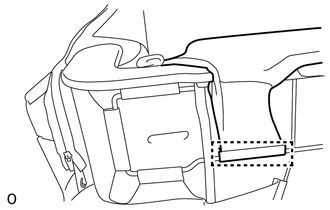

      GTY370166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 4 claws and clamp to remove the rear seat No. 3 cushion hinge cover.

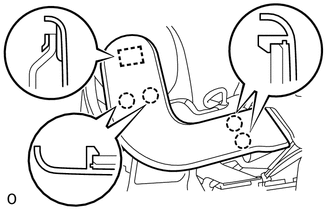

      GTY370165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  6. REMOVE REAR SEAT LOWER CUSHION HINGE COVER LH

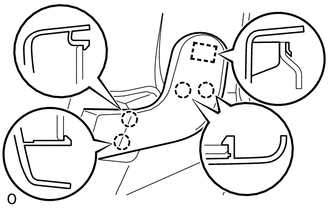

    GTY369830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 4 claws and clamp to remove the rear seat lower cushion hinge cover LH.

      HINT:

      Tape the screwdriver tip before use.

  7. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
    1. Remove the bolt, washer and rear seat center armrest assembly.
      GTY369828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT NO. 1 CENTER ARMREST PLATE
    1. Remove the rear seat No. 1 center armrest plate.
      GTY369829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEATBACK NO. 1 BOARD CAP
    1. Using a screwdriver, detach the 3 claws to remove the rear seatback No. 1 board cap.
      GTY382308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  10. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
    1. Remove the 3 screws and reclining adjuster release handle LH.
      GTY369825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR NO. 1 SEAT CUSHION ASSEMBLY LH
    1. Remove the 2 bolts and 2 bushes and lift up the cushion as shown in the illustration.
      GTY369819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp of the cable end.
      GTY364575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the cable in the order shown in the illustration.
    4. Remove the 3 clamps.

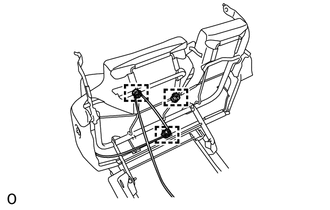

      GTY369832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the 2 claws to remove the rear seatback cover.

      HINT:

      Tape the screwdriver tip before use.

      GTY376481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
    6. Remove the 2 bolts, 2 bushes and rear No. 1 seat cushion assembly LH.

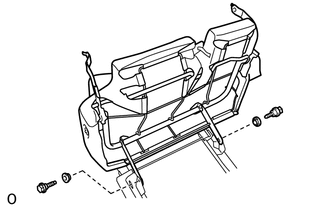

      GTY363162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER
    1. Detach the 20 hooks and remove the separate type seat cushion cover (with pad) from the rear seat spring assembly LH.

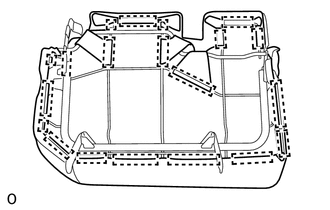

      GTY363161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 hog rings.

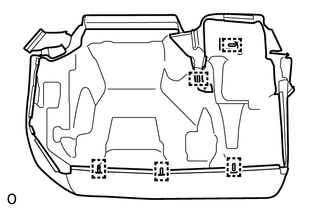

      GTY363164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 13 hog rings and separate type rear seat cushion cover from the rear seat cushion pad LH.
      GTY363163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT CUSHION MOULDING LH
    1. Detach the claw and 3 hooks to remove the rear seat cushion moulding LH.

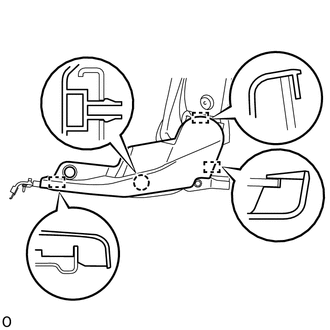

      GTY363155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEAT COVER LH
    1. Remove the clip and screw.
      GTY363153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw to remove the rear seat cover LH.
  15. REMOVE REAR SEATBACK COVER LH
    1. Remove the clip and screw.

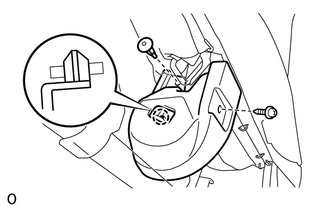

      GTY381508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw to remove the rear seatback cover LH.
  16. REMOVE REAR SEAT REAR CUSHION MOULDING LH

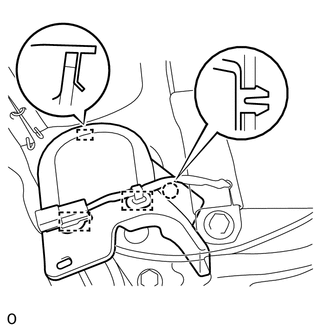

    GTY381503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/ Seat Belt Warning System:

      Detach the 2 clamps.

    2. Detach the claw and clamp to remove the rear seat rear cushion moulding LH.
  17. REMOVE NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY

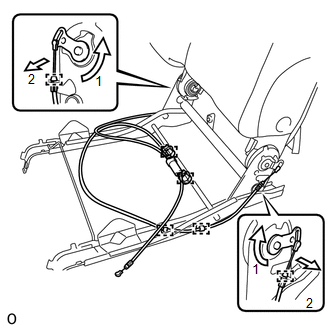

    GTY381277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clamps.
    2. Detach the 2 clamps of the cable end.
    3. Disconnect the 2 cables in the order shown in the illustration and remove the No. 2 seat adjuster control cable.
  18. REMOVE REAR SEAT INNER BELT ASSEMBLY LH
    1. Remove the bolt and rear seat inner belt assembly.
      GTY363132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR NO. 1 SEATBACK ASSEMBLY LH
    1. Remove the 3 bolts and rear No. 1 seatback assembly LH from the rear seat reclining adjuster assembly LH.
      GTY363131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEATBACK BOARD LH
    1. Remove the 6 hog rings and detach the 2 pieces of fastening tape.
      GTY381504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 7 claws and clamp to remove the rear No. 1 seatback board assembly LH.
      GTY363139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE SEPARATE TYPE REAR SEATBACK COVER
    1. Detach the 8 claws to remove the 4 rear seat headrest supports.
      GTY363138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 9 clamps.

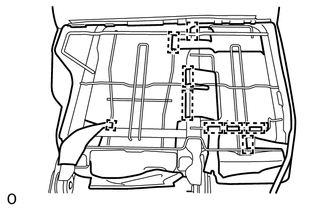

      GTY363137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the separate type rear seatback cover (with pad) from the rear seatback frame sub-assembly LH.
    4. Remove the 5 hog rings.

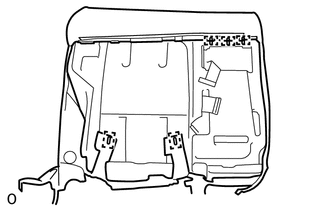

      GTY363130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 11 hog rings and separate type rear seatback cover from the separate type rear seatback pad.
      GTY363129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
