Removal [12/2012 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2012 - ]

  2. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 1 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - ]

  3. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 2 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - ]

  4. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 3 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 3 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - ]

  5. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 4 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - ]

  6. REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY

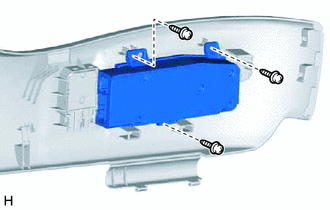

    1. Remove the 3 screws and position control ECU and switch assembly.
      GTY384350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
