Components [08/2016 - ]: Illustration

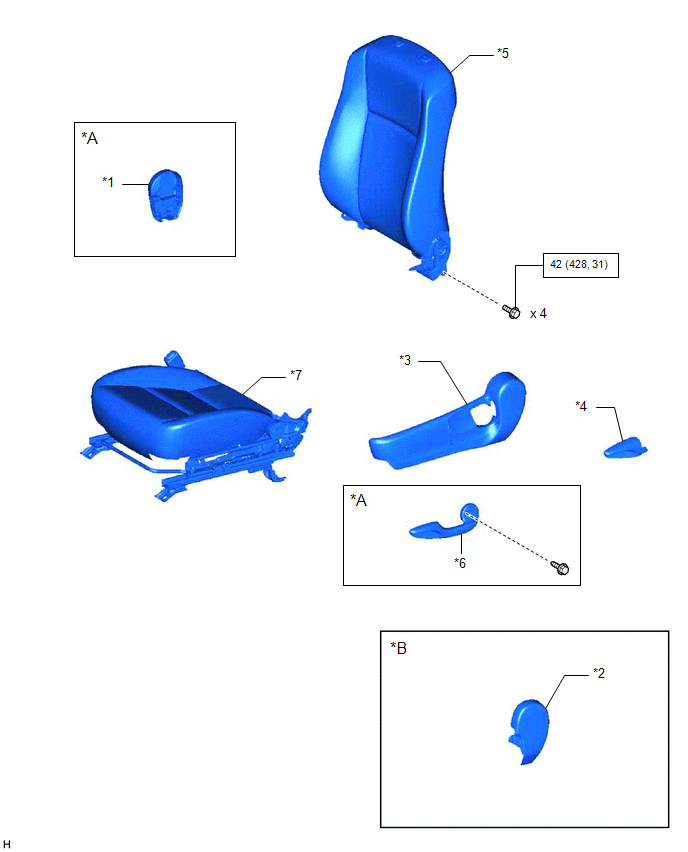

Fig 1: Front Seat Cushion Heater Components (for Manual Seat) With Torque Specifications [08/2016 - ]
| Callout | Description | Callout | Description |
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT INNER SEAT CUSHION SHIELD LH | *2 | FRONT INNER SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT CUSHION SHIELD LH | *4 | RECLINING ADJUSTER RELEASE HANDLE LH |
| *5 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *6 | VERTICAL ADJUSTING HANDLE LH |
| *7 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
