Removal [10/2015 - ]: Procedure

  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 18

  2. REMOVE STOP LIGHT CONTROL ECU ASSEMBLY

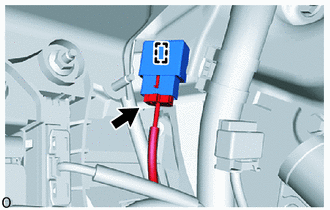

    1. Disconnect the connector.
      GTY598006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the stop light control ECU assembly.
