Reassembly [12/2012 - 10/2015]: Procedure

  1. INSTALL FOG LIGHT BULB

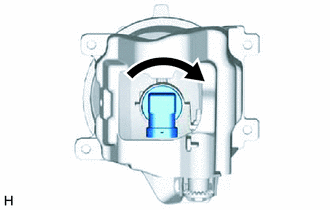

    GTY363568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the fog light bulb in the direction indicated by the arrow in the illustration to install it to the fog light.
