Removal [12/2012 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [12/2012 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - ]
- REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to REMOVAL [12/2012 - 10/2015] , or refer to REMOVAL [10/2015 - ]

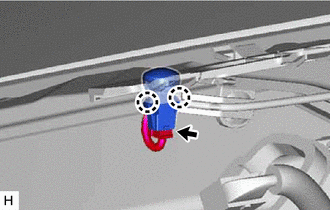

- REMOVE AUTOMATIC LIGHT CONTROL SENSOR
- Disconnect the connector.
- Detach the 2 claws to remove the automatic light control sensor.
