Removal [12/2012 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. DISCONNECT SKID CONTROL SENSOR WIRE LH

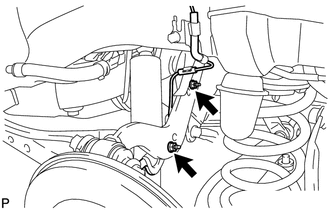

    1. Remove the 2 nuts and disconnect the skid control sensor wire from the rear upper control arm.
      GTY368005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    GTY368004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

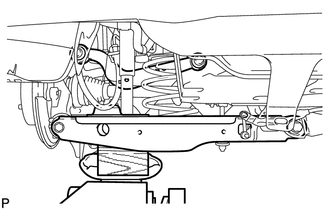

    1. Using a jack and wooden block, raise the vehicle and hold the rear No. 2 suspension arm assembly LH together with the rear axle carrier at the standard vehicle height.

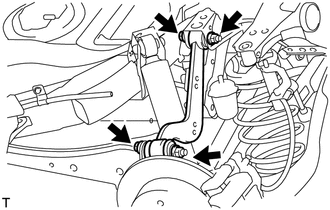

    2. Remove the 2 bolts, 2 nuts and upper control arm.
      GTY370527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Since a stopper nut is used, remove the bolt.
