Components [12/2012 - ]: Illustration

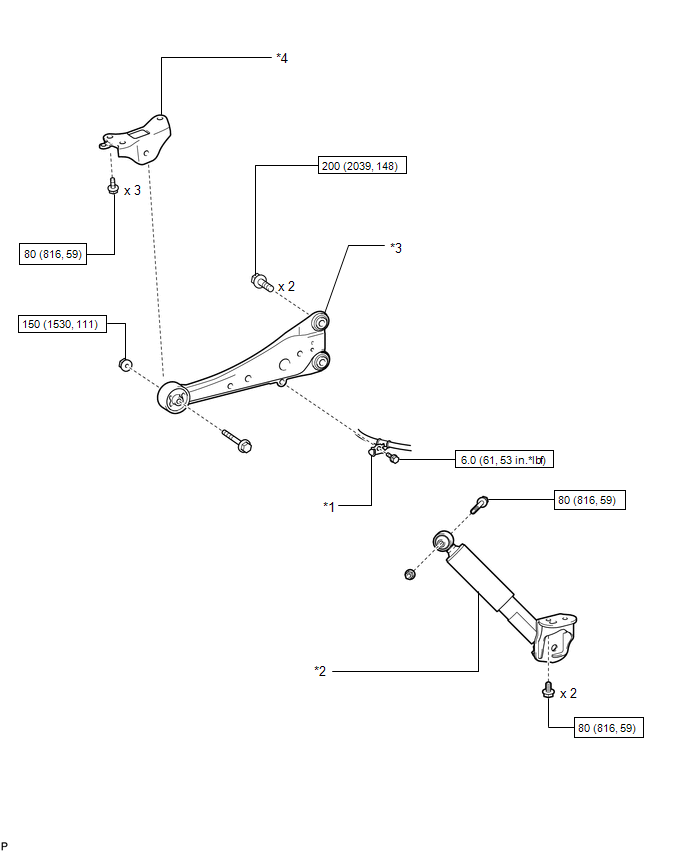

Fig 1: Rear Trailing Arm Components With Torque Specifications [12/2012 - ]
GTY365139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 3 PARKING BRAKE CABLE ASSEMBLY *2 REAR SHOCK ABSORBER ASSEMBLY LH
*3 REAR TRAILING ARM ASSEMBLY LH *4 REAR SUSPENSION ARM BRACKET LH
Specified torque: N*m (kgf*cm, ft.*lbf) - -
