Components [12/2012 - ]: Illustration

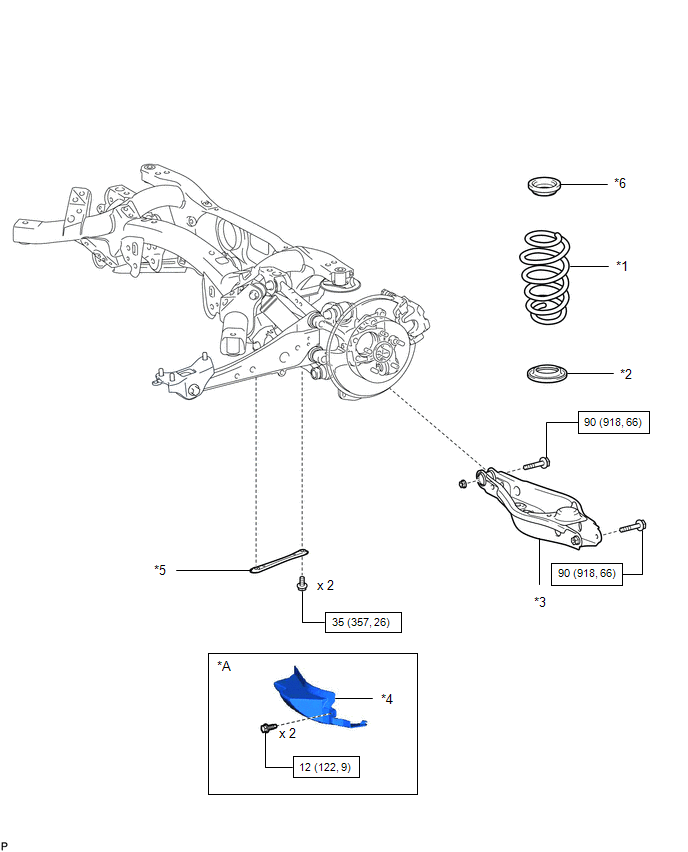

Fig 1: Rear Stabilizer Bar Components With Torque Specifications (1 Of 2) [12/2012 - ]

GTY582148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	REAR COIL SPRING LH	*2	REAR LOWER COIL SPRING INSULATOR LH
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	*4	REAR SUSPENSION ARM COVER LH
*5	REAR SUSPENSION MEMBER BRACE LH	*6	REAR UPPER COIL SPRING INSULATOR LH
	Specified torque: Nm (kgfcm, ft.*lbf)	-	-

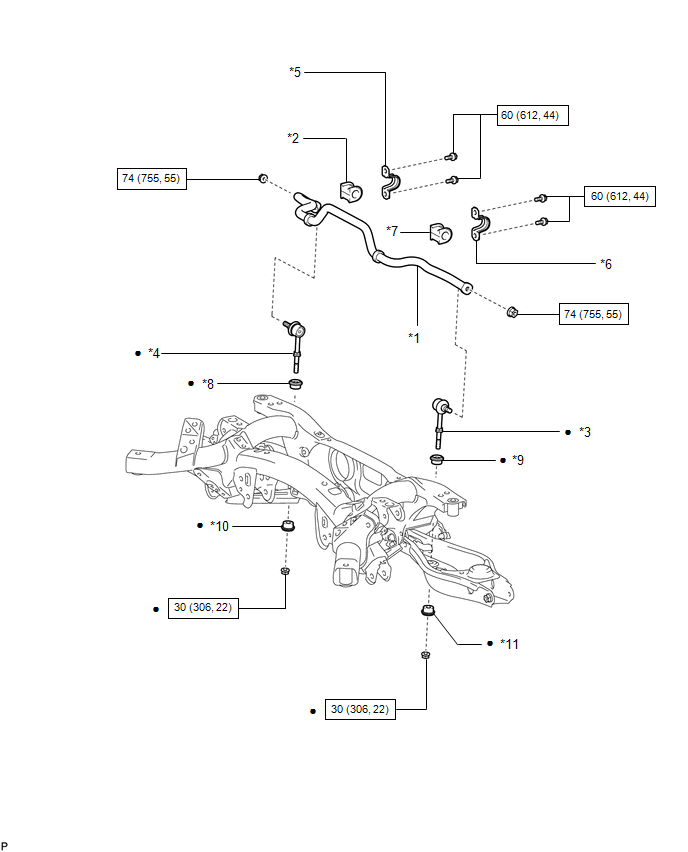

Fig 1: Rear Stabilizer Bar Components With Torque Specifications (2 Of 2) [12/2012 - ]

GTY370379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR STABILIZER BAR	*2	REAR STABILIZER BUSHING RH
*3	REAR STABILIZER LINK ASSEMBLY LH	*4	REAR STABILIZER LINK ASSEMBLY RH
*5	REAR NO. 1 STABILIZER BAR BRACKET RH	*6	REAR NO. 1 STABILIZER BAR BRACKET LH
*7	REAR STABILIZER BUSHING LH	*8	REAR STABILIZER CUSHION
*9	REAR STABILIZER CUSHION	*10	REAR STABILIZER CUSHION
*11	REAR STABILIZER CUSHION	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part
