Components [12/2012 - ]: Illustration

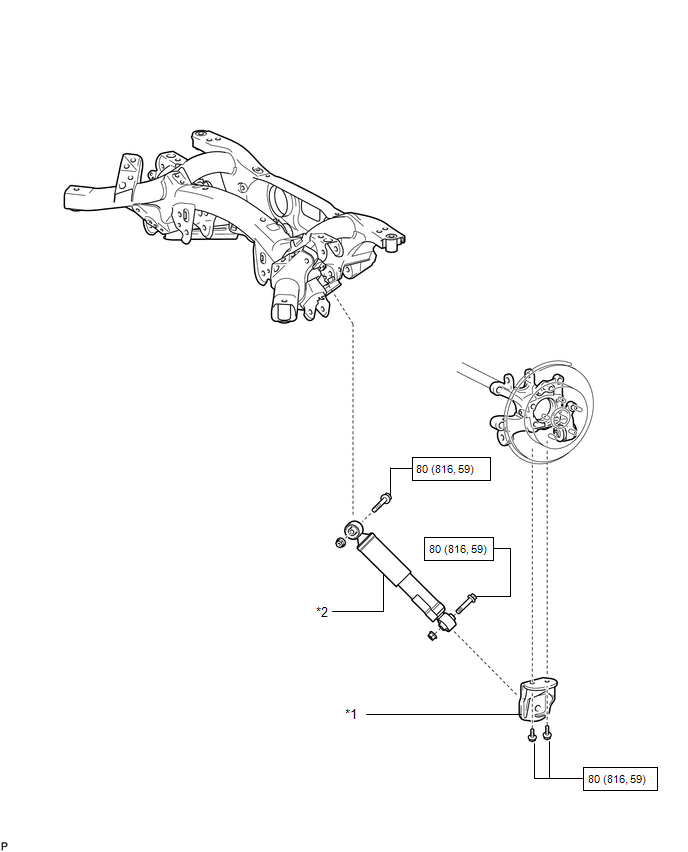

Fig 1: Rear Shock Absorber Components With Torque Specifications [12/2012 - ]
GTY363507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SHOCK ABSORBER BRACKET LH *2 REAR SHOCK ABSORBER ASSEMBLY LH
Specified torque: N*m (kgf*cm, ft.*lbf) - -
