Installation [12/2012 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear upper coil spring insulator to the rear coil spring.
   NOTE:

   Install the rear upper coil insulator so that the distance between the stopper and upper end of the rear coil spring is 10 mm (0.394 in.) or less.

1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm.

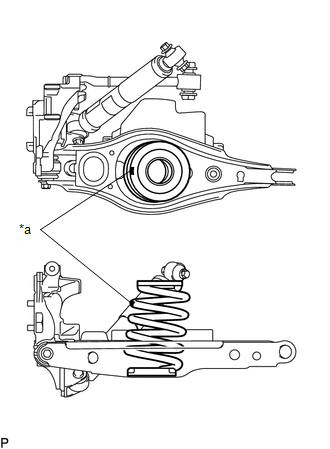

1. Install the rear coil spring to the rear No. 2 suspension arm.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

   NOTE:

   Install the rear coil spring so that the identification marks are positioned as shown in the illustration.

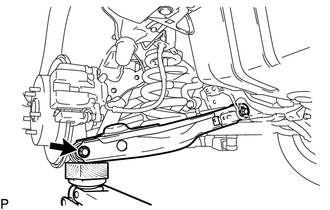

2. Using a jack and wooden block, raise the vehicle gradually to install the rear No. 2 suspension arm to the rear axle carrier. Then temporarily install the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1

See step  3

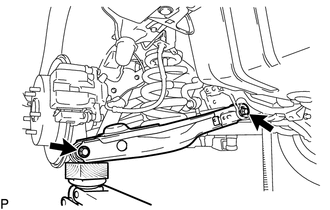

1. Tighten the bolts of the suspension arm.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   NOTE:

   Since a stopper nut is used, tighten the bolt.

See step  7

See step  11

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to ADJUSTMENT [12/2012 - 08/2017] Refer to ADJUSTMENT [08/2017 - ]
