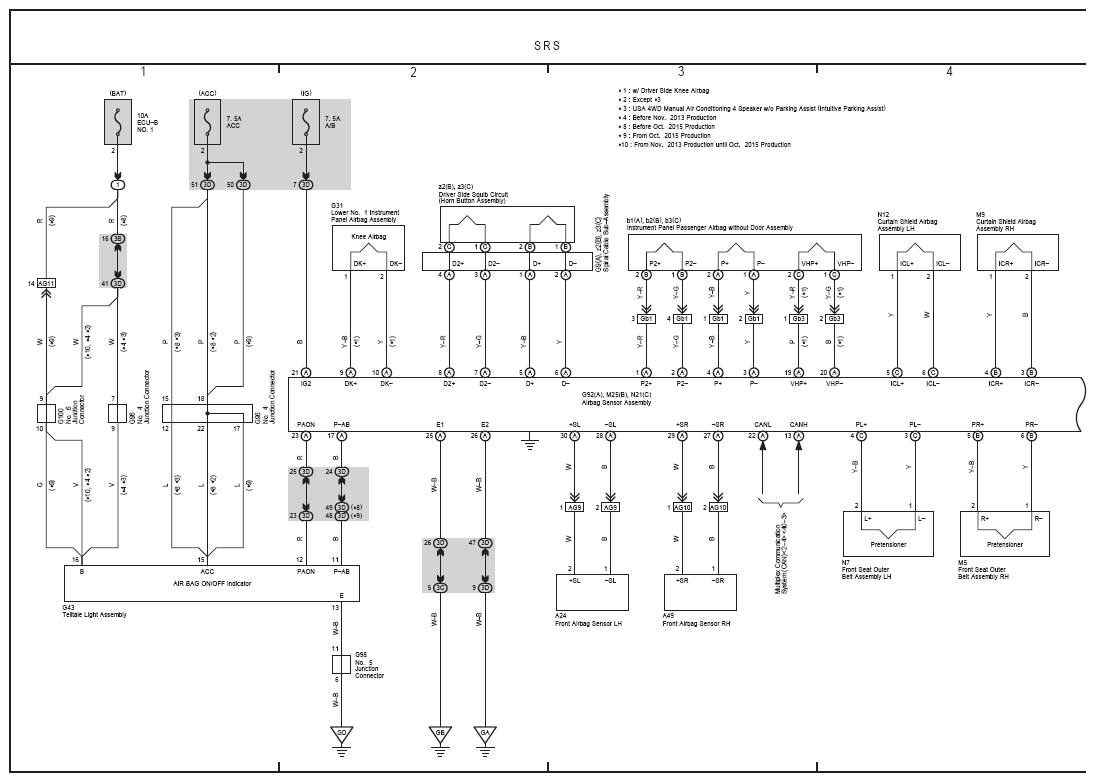

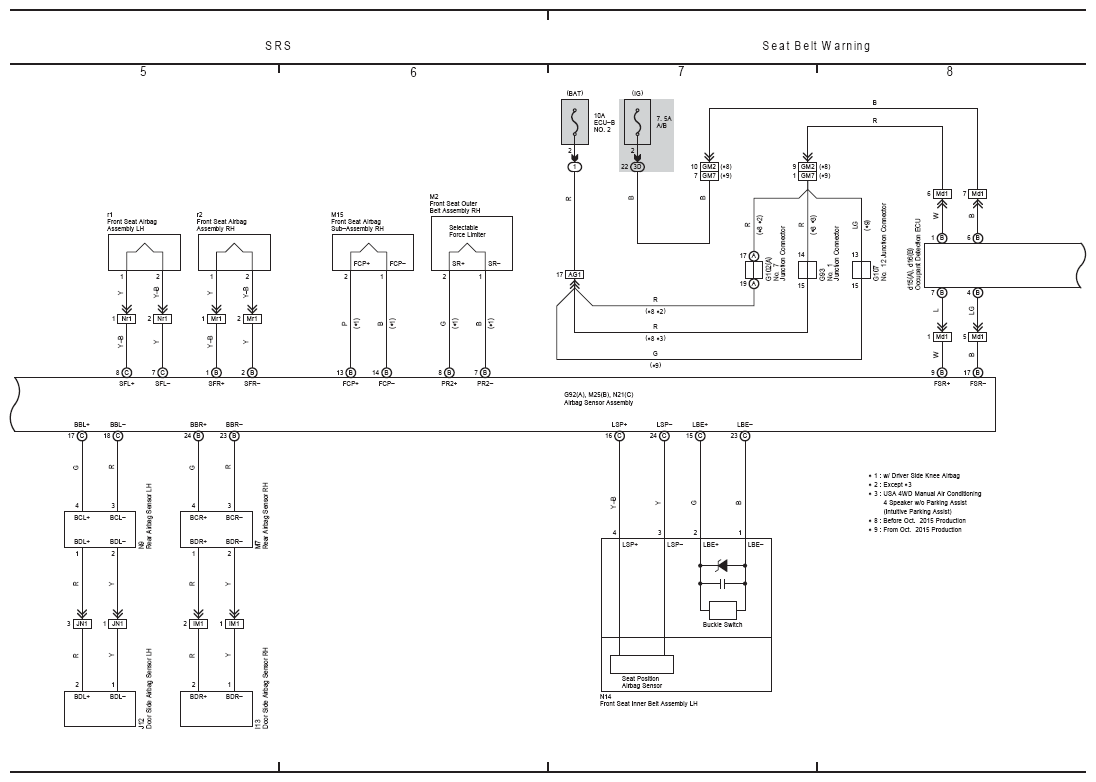

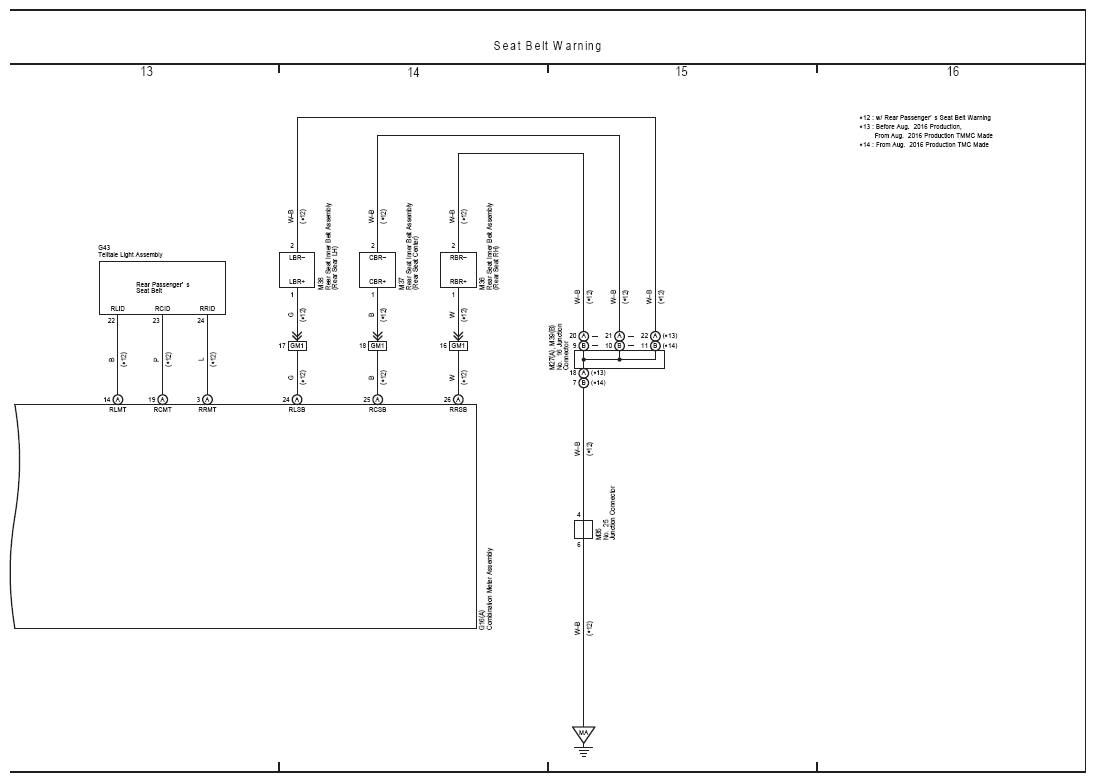

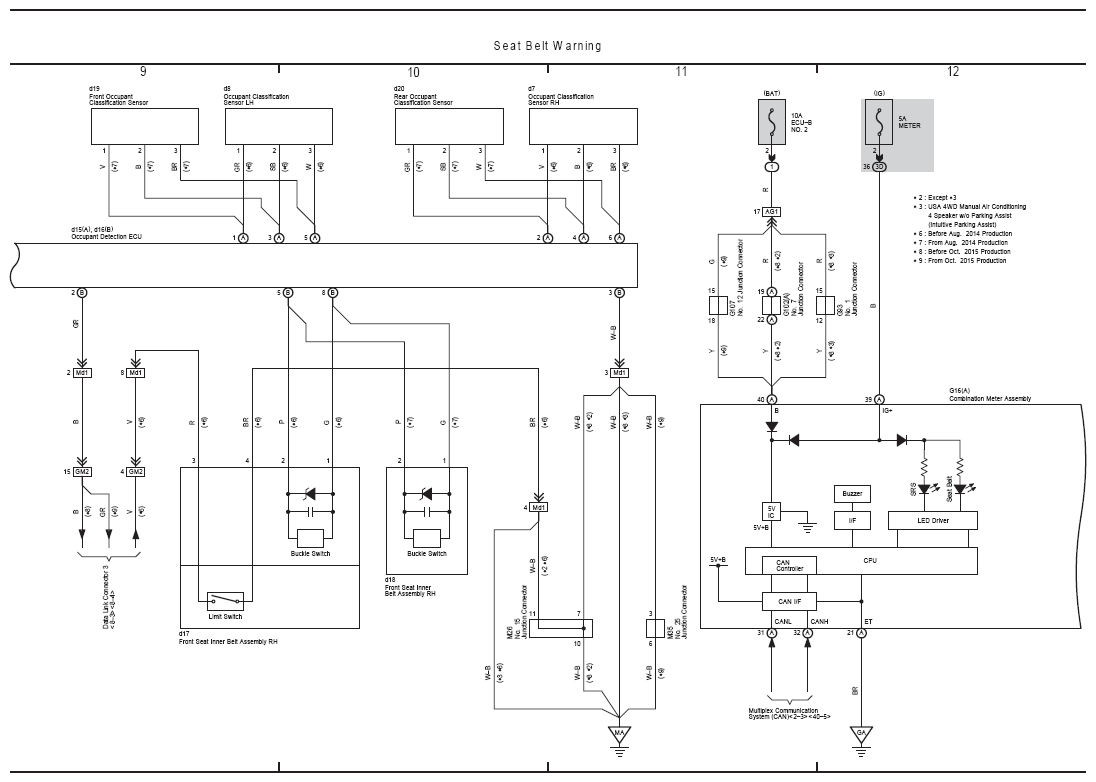

Home >> Toyota >> 2017 >> RAV4 LE, AWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> SRS, Seat Belt Warning
