System Diagram [08/2016 - ]

  1. CAN SIGNAL

    Refer to SYSTEM DIAGRAM [10/2015 - ]

  2. DIRECT LINE SIGNAL
    Fig 1: Meter / Gauge System Diagram (1 Of 6)
    GTY735157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

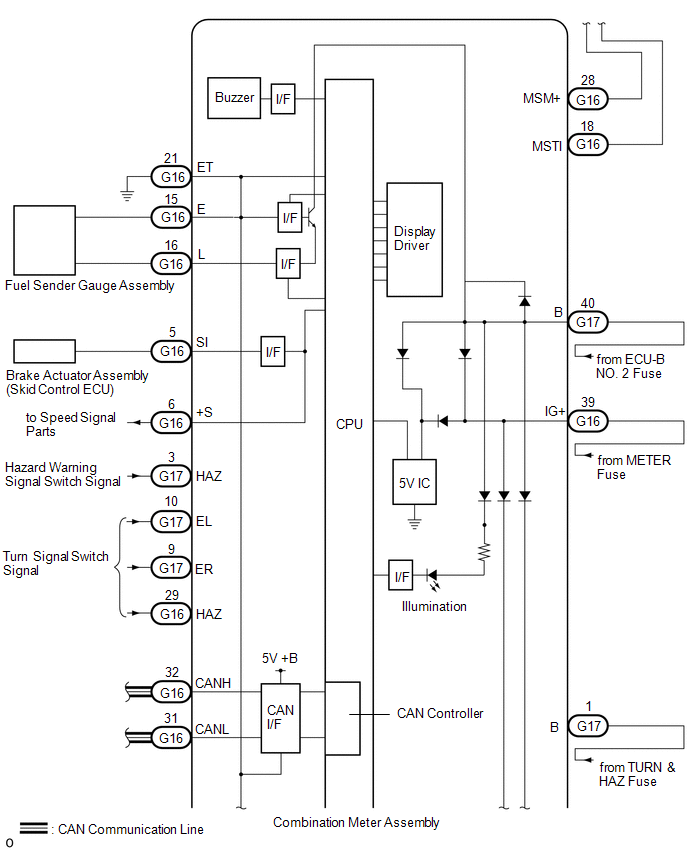

    Fig 2: Meter / Gauge System Diagram (2 Of 6)
    GTY698326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

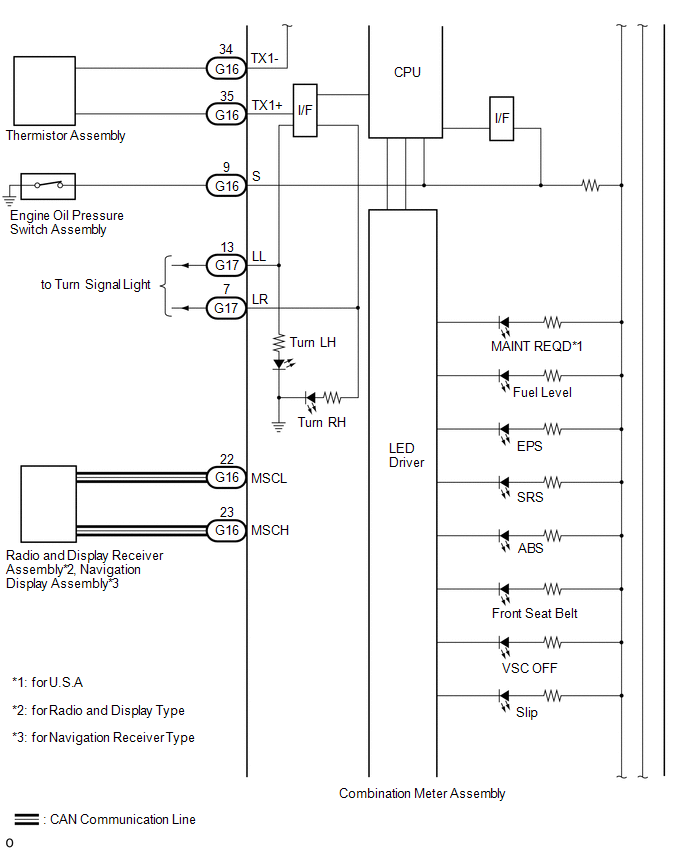

    Fig 3: Meter / Gauge System Diagram (3 Of 6)
    GTY701520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Meter / Gauge System Diagram (4 Of 6)
    GTY580804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

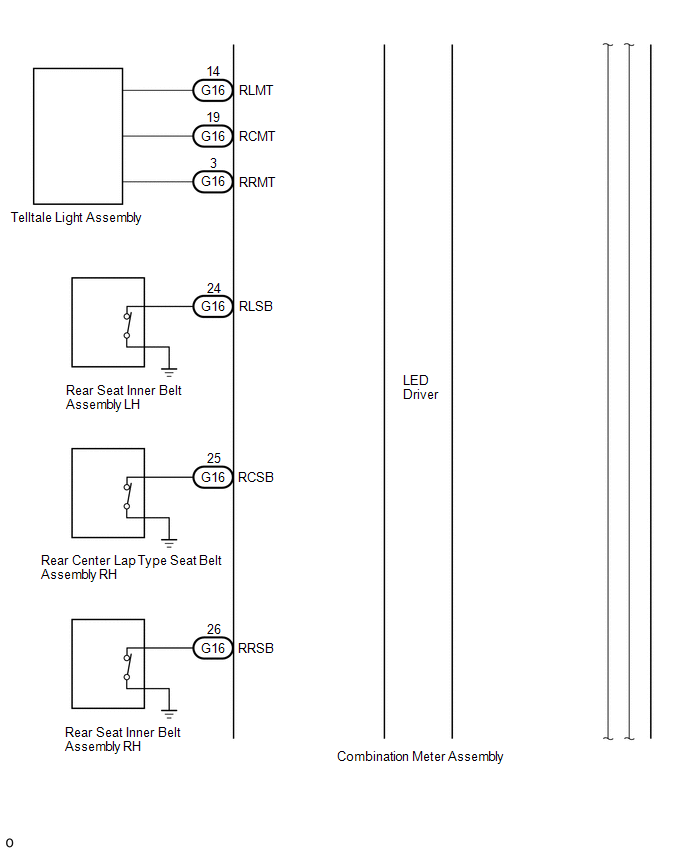

    Fig 5: Meter / Gauge System Diagram (5 Of 6)
    GTY709696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

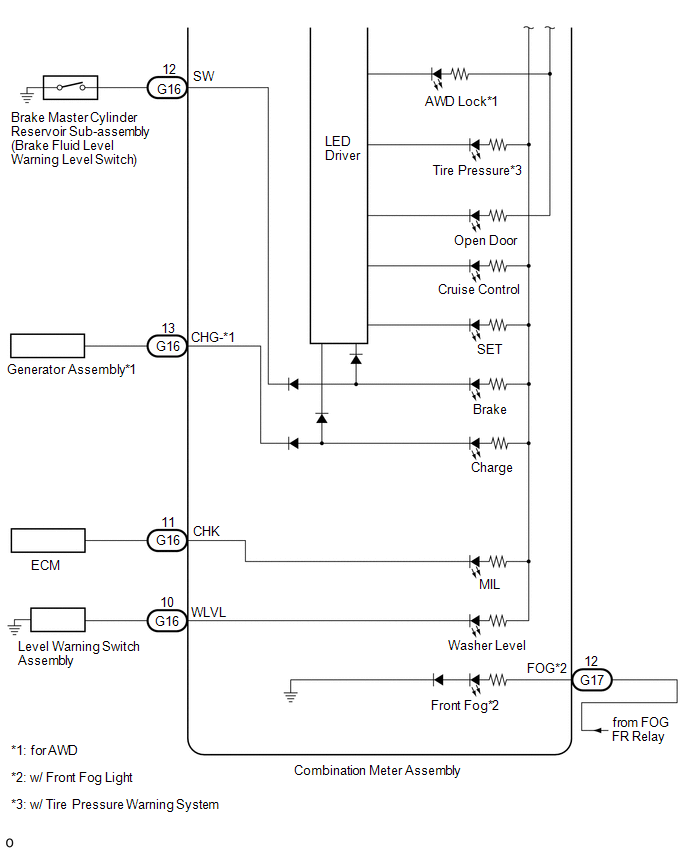

    Fig 6: Meter / Gauge System Diagram (6 Of 6)
    GTY710761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
