Parts Location [12/2012 - 11/2013]: Illustration

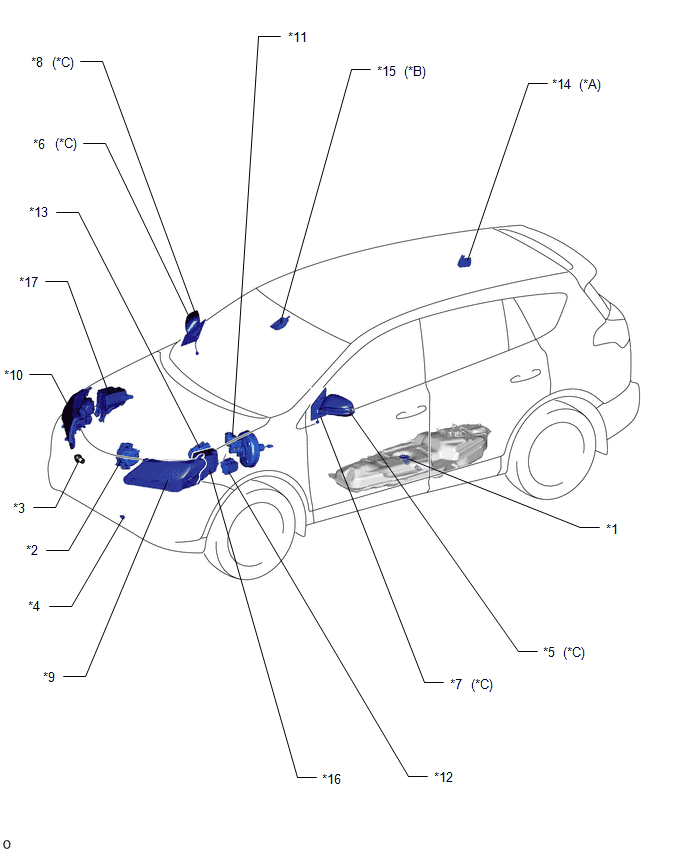

| *A | w/ Tire Pressure Warning System | *B | w/ Lane Departure Alart System |
| *C | w/ Side Turn Signal Light | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | GENERATOR |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | COOLER THERMISTER (AMBIENT TEMPERATURE SENSOR) |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH |
*8 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER REAR VIEW MIRROR SUB-ASSEMBLY RH |
| *9 | FRONT TURN SIGNAL LIGHT LH | *10 | FRONT TURN SIGNAL LIGHT RH |
| *11 | BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*12 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *13 | ECM | *14 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *15 | LANE DEPARTURE WARNING CAMERA | *16 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - TURN&HAZ FUSE |
| *17 | NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - FOG FR RELAY |
- | - |

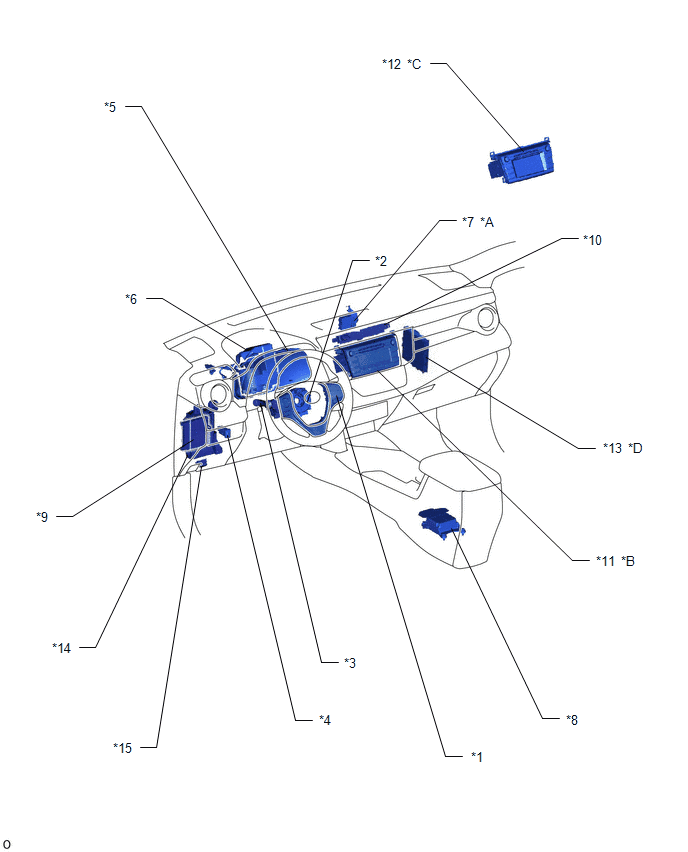

| *A | for AWD | *B | for Radio Receiver Type |
| *C | for Radio and Display Type | *D | w/ Smart Key System |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | LIGHT CONTROL RHEOSTAT |
| *5 | COMBINATION METER ASSEMBLY | *6 | POWER STEERING ECU ASSEMBLY |
| *7 | 4WD ECU ASSEMBLY | *8 | AIRBAG SENSOR ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | TELLTALE LIGHT ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
| *11 | RADIO RECEIVER ASSEMBLY | *12 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *13 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *14 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
| *15 | DLC3 | - | - |

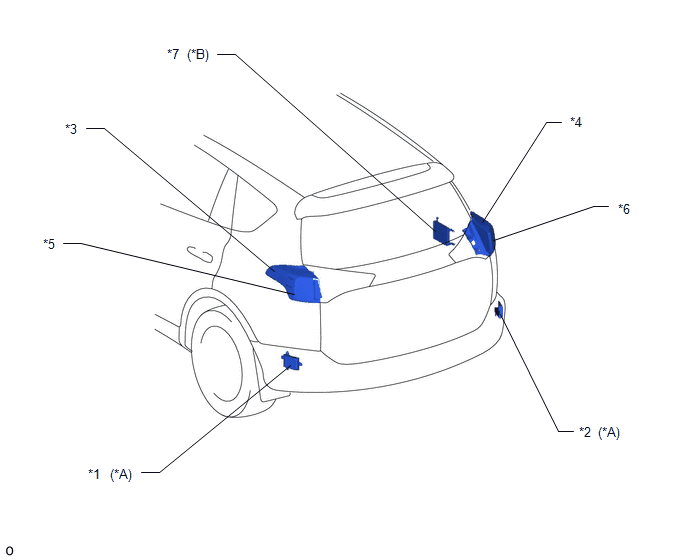

| *A | w/ Blind Spot Monitor System | *B | for 11 Speakers |
| *1 | BLIND SPOT MONITOR SENSOR LH | *2 | BLIND SPOT MONITOR SENSOR RH |
| *3 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH | *4 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *5 | REAR TURN SIGNAL LIGHT LH | *6 | REAR TURN SIGNAL LIGHT RH |
| *7 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |
