Removal [12/2012 - ]: Procedure
- REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
Refer to REMOVAL [12/2012 - ]
- REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
Refer to REMOVAL [12/2012 - ]
- REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

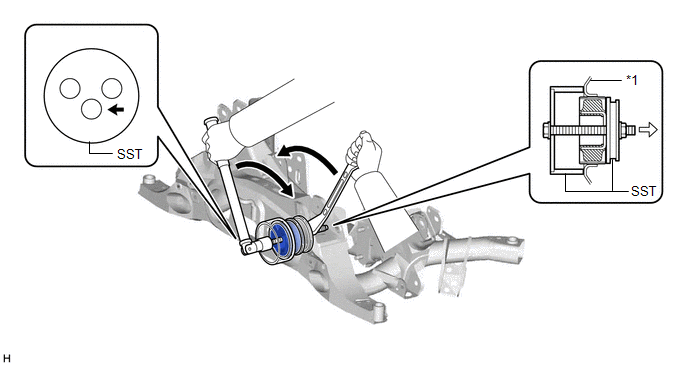

- Using SST, remove the rear No. 1 differential mount cushion.
*1 Rear Suspension Member Sub-assembly - - Front of Vehicle - - - SST: 09316-1201009570-24011
NOTE:- Do not bring SST into contact with the rear suspension member sub-assembly.
- Before using SST, apply grease to SST bolt.
- Set SST in the correct direction.
- Do not tilt the bolt of SST.
- Do not reuse the rear No. 1 differential mount cushion.
- Using SST, remove the rear No. 1 differential mount cushion.
