Removal [12/2012 - ]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [12/2012 - ] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - ] ).
REMOVE UPPER INSTRUMENT PANEL
Refer to REMOVAL [12/2012 - 10/2015] , or refer to REMOVAL [10/2015 - ]
REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [12/2012 - ]
DISCONNECT CONNECTORS
1. Disconnect the stop light switch connector.
2. Detach the 2 clamps from the brake pedal support.
REMOVE STOP LIGHT SWITCH ASSEMBLY
Refer to REMOVAL [12/2012 - ]
REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the brake pedal return spring from the brake pedal support.
REMOVE PUSH ROD PIN
1. Remove the clip from the push rod pin.
2. Remove the push rod pin from the push rod clevis.

REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

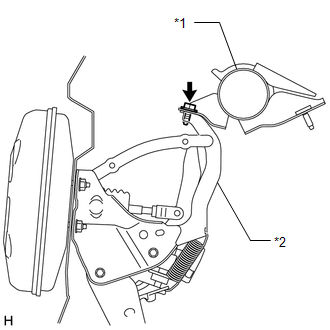

Remove the brake pedal support reinforcement set bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Instrument Panel Reinforcement
*2	Brake Pedal Support

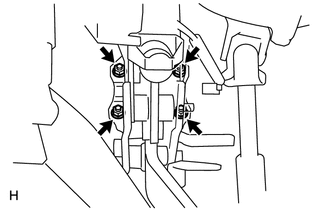

Remove the 4 nuts and brake pedal support assembly.
