Reassembly [12/2012 - ]: Procedure

  1. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER
    1. Install the brake master cylinder reservoir strainer to the brake master cylinder reservoir assembly.
  2. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
    1. Install the brake master cylinder reservoir filler cap assembly to the brake master cylinder reservoir assembly.
  3. INSTALL BRAKE FLUID INFORMATION LABEL
  4. INSTALL MASTER CYLINDER RESERVOIR GROMMET

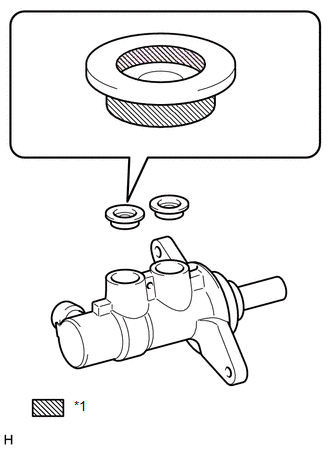

    1. GTY366654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lithium soap base glycol grease

      Apply a light coat of lithium soap base glycol grease to 2 new master cylinder reservoir grommets, and then install them to the brake master cylinder reservoir assembly.

  5. INSTALL BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY
    1. Install the brake master cylinder reservoir to the brake master cylinder body.
  6. INSTALL BRAKE MASTER CYLINDER RING PIN
    1. Using a pin punch and hammer, install a pin to the brake master cylinder reservoir.
