Components [08/2016 - ]: Illustration

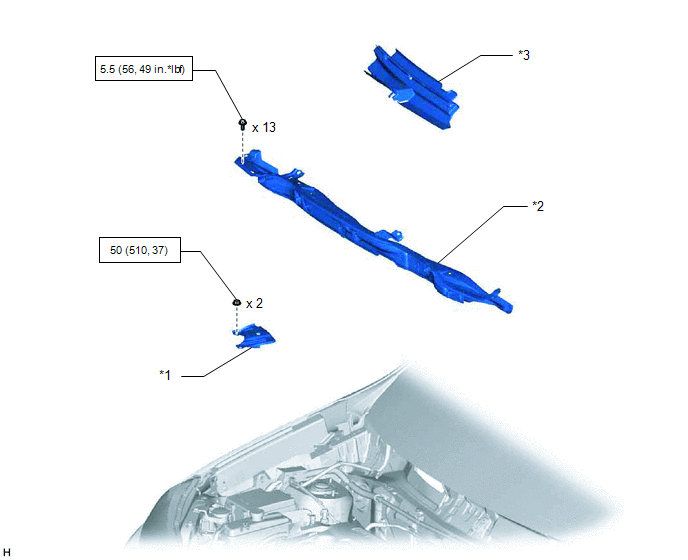

Fig 1: Brake Booster Components With Torque Specifications [08/2016 - ] (1 Of 2)

GTY713272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL BODY MOUNTING REINFORCEMENT LH	*2	COWL TOP PANEL OUTER SUB-ASSEMBLY
*3	COWL VENTILATOR HOUSING SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

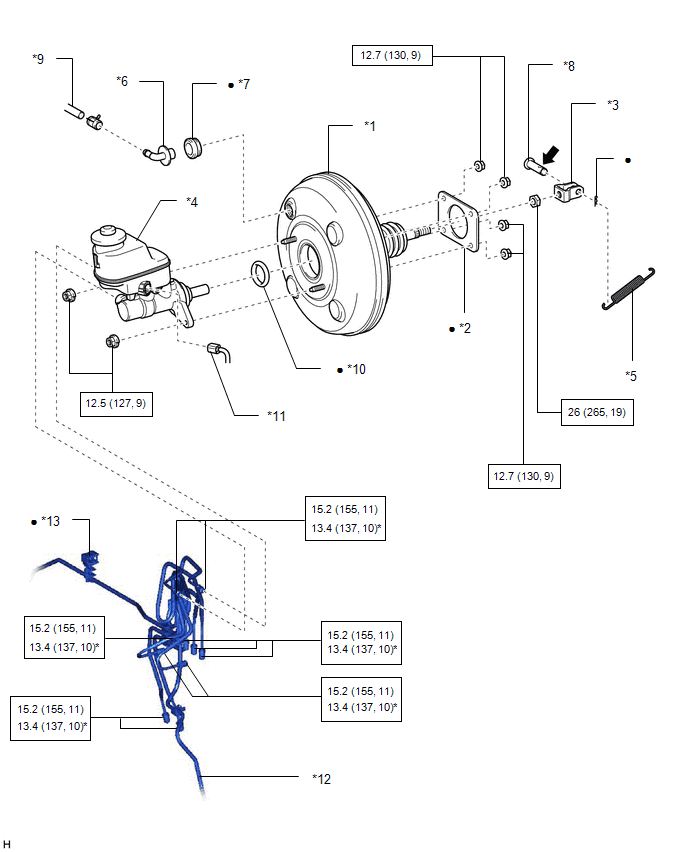

Fig 1: Brake Booster Components With Torque Specifications [08/2016 - ] (2 Of 2)

GTY735819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE BOOSTER ASSEMBLY	*2	BRAKE BOOSTER GASKET
*3	BRAKE MASTER CYLINDER PUSH ROD CLEVIS	*4	BRAKE MASTER CYLINDER SUB-ASSEMBLY
*5	BRAKE PEDAL RETURN SPRING	*6	BRAKE VACUUM CHECK VALVE ASSEMBLY
*7	CHECK VALVE GROMMET	*8	PUSH ROD PIN
*9	VACUUM HOSE	*10	O-RING
*11	BRAKE FLUID LEVEL WARNING SWITCH CONNECTOR	*12	FRONT BRAKE LINE
*13	BRAKE TUBE CLAMP	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with union nut wrench
•	Non-reusable part		Lithium soap base glycol grease
