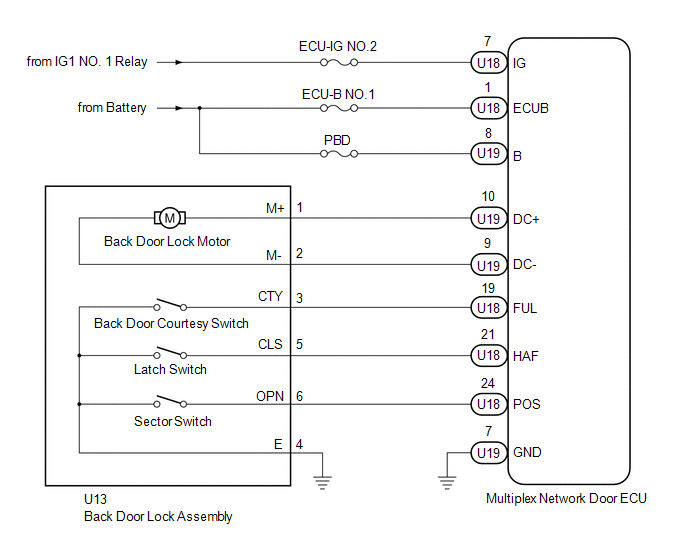

DTC B2251: Back Door Closer Switch Malfunction [12/2012 - 10/2015]: Wiring Diagram

GTY366413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
