Components [12/2012 - 10/2015]

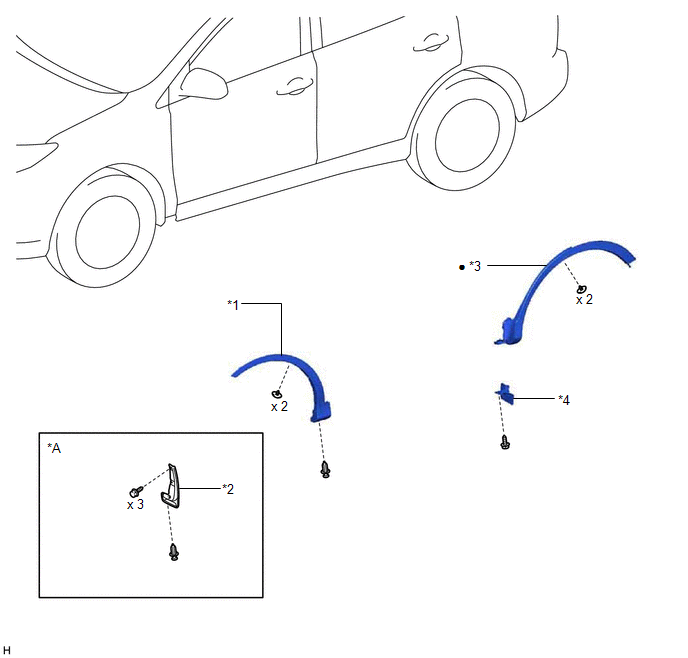

GTY364483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Mudguard - -
*1 FRONT FENDER MOULDING SUB-ASSEMBLY LH *2 FRONT FENDER MUDGUARD LH
*3 QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH *4 REAR WHEEL HOUSE FRONT PLATE LH
• Non-reusable part - -
GTY379653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT WHEEL OPENING EXTENSION PAD LH - -
• Non-reusable part - -
