Name Plate
>>
Components [10/2015 - ]
Components [10/2015 - ]
Fig 1: Name Plate Components [10/2015 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for AWD
-
-
*1
NO. 1 BACK DOOR EMBLEM
*2
NO. 4 BACK DOOR NAME PLATE
*3
SYMBOL EMBLEM
-
-
•
Non-reusable part
-
-

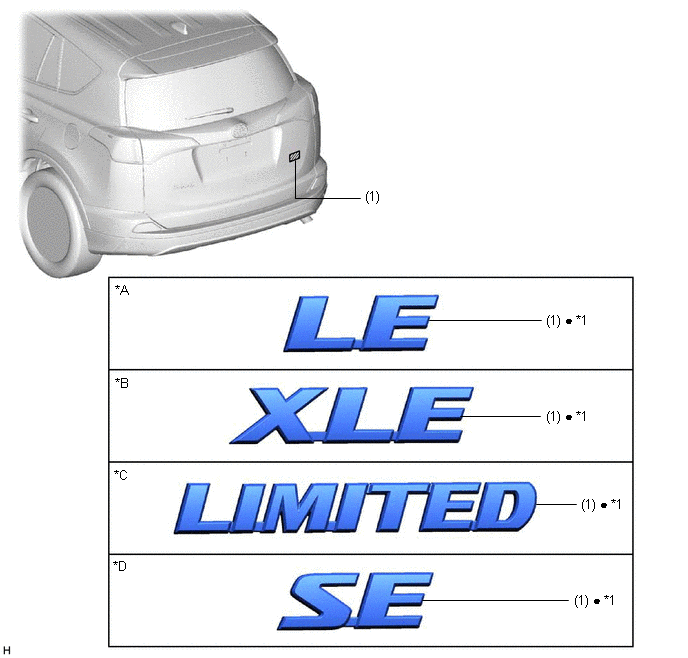

Fig 2: Name Plate Components [10/2015 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for Type A
*B
for Type B
*C
for Type C
*D
for Type D
*1
NO. 3 BACK DOOR NAME PLATE
-
-
•
Non-reusable part
-
-
