Removal [12/2012 - ]: Procedure

  1. REMOVE FUSE BOX OPENING COVER

    Refer to PROCEDURE - Step 8 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - ]

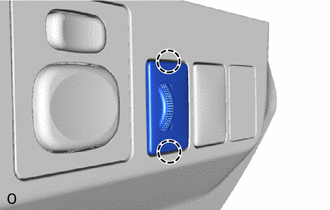

  2. REMOVE LIGHT CONTROL RHEOSTAT
    GTY367594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws and remove the light control rheostat from the fuse box opening cover.
