Meter / Gauge / Display (Service Information) (Except Hybrid)
>>
Combination Meter
>>
Components [12/2012 - ]
>>

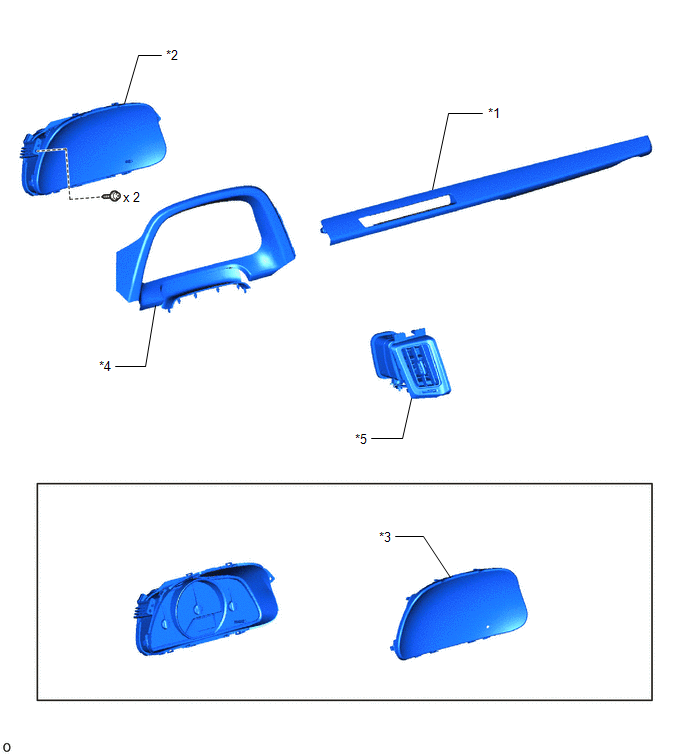

Illustration
Components [12/2012 - ]: Illustration
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL
*2
COMBINATION METER ASSEMBLY
*3
COMBINATION METER GLASS
*4
NO. 1 INSTRUMENT CLUSTER FINISH PANEL
*5
NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
-
