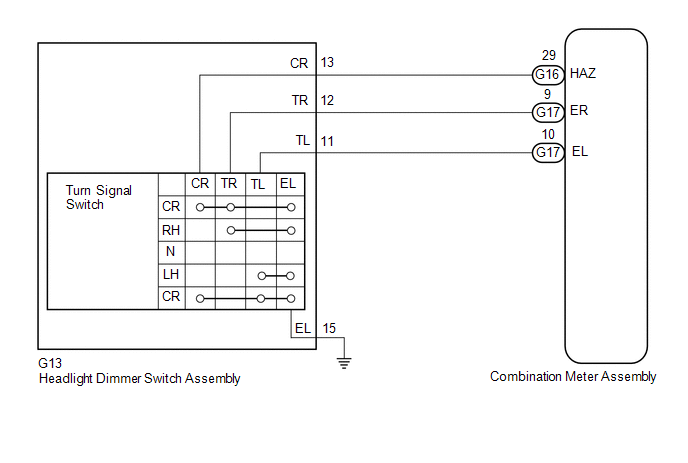

Turn Signal Switch Circuit [12/2012 - ]: Wiring Diagram

GTY363374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
