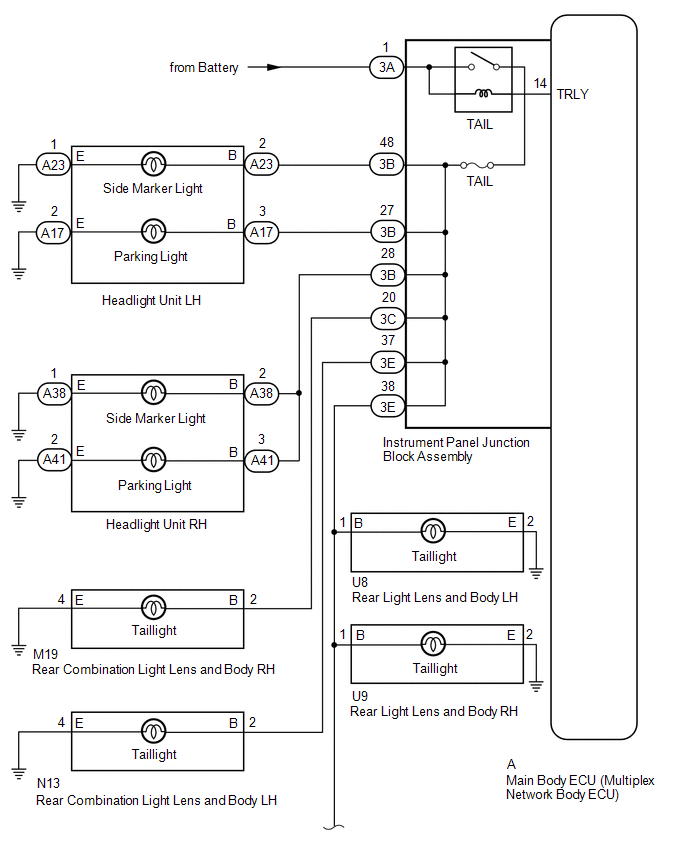

Taillight Relay Circuit [12/2012 - 08/2014]: Wiring Diagram

GTY364862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY372510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
