DRL Relay Circuit [10/2015 - ]: Wiring Diagram

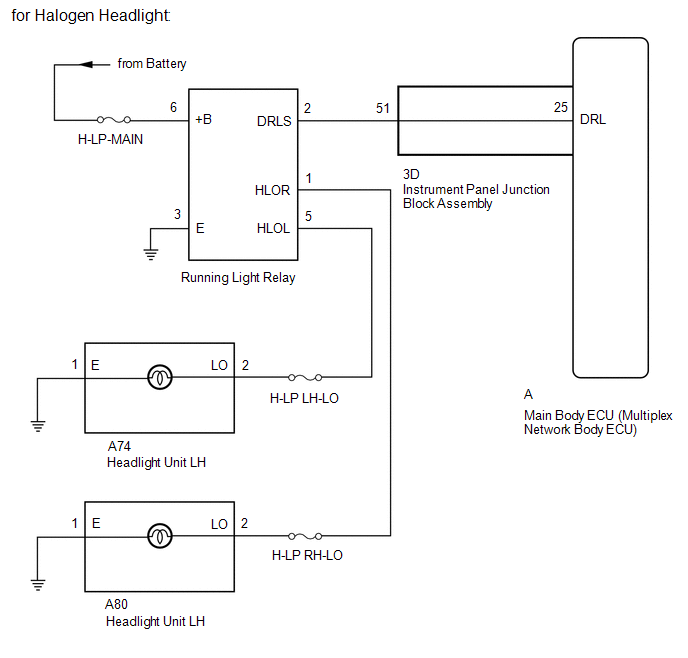

GTY603486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

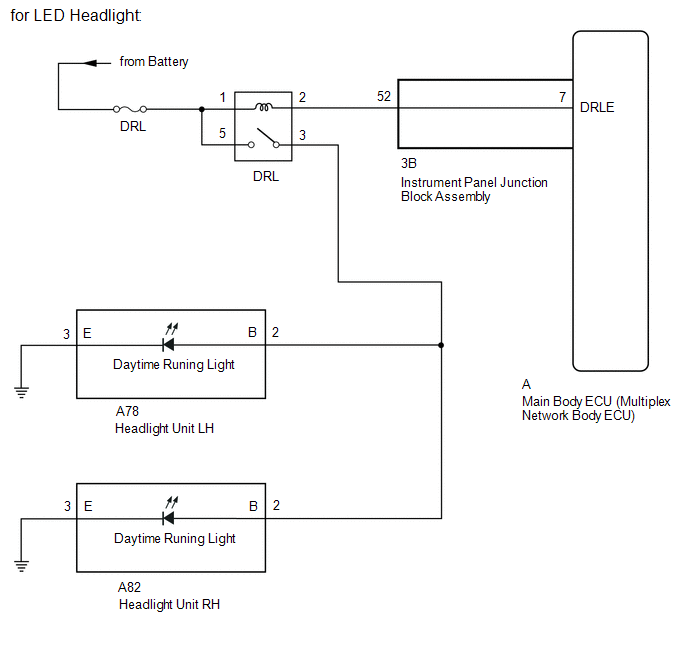

GTY558690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
