DTC P0C73-776: Motor Electronics Coolant Pump "A" Control Performance [08/2015 - ]: Wiring Diagram

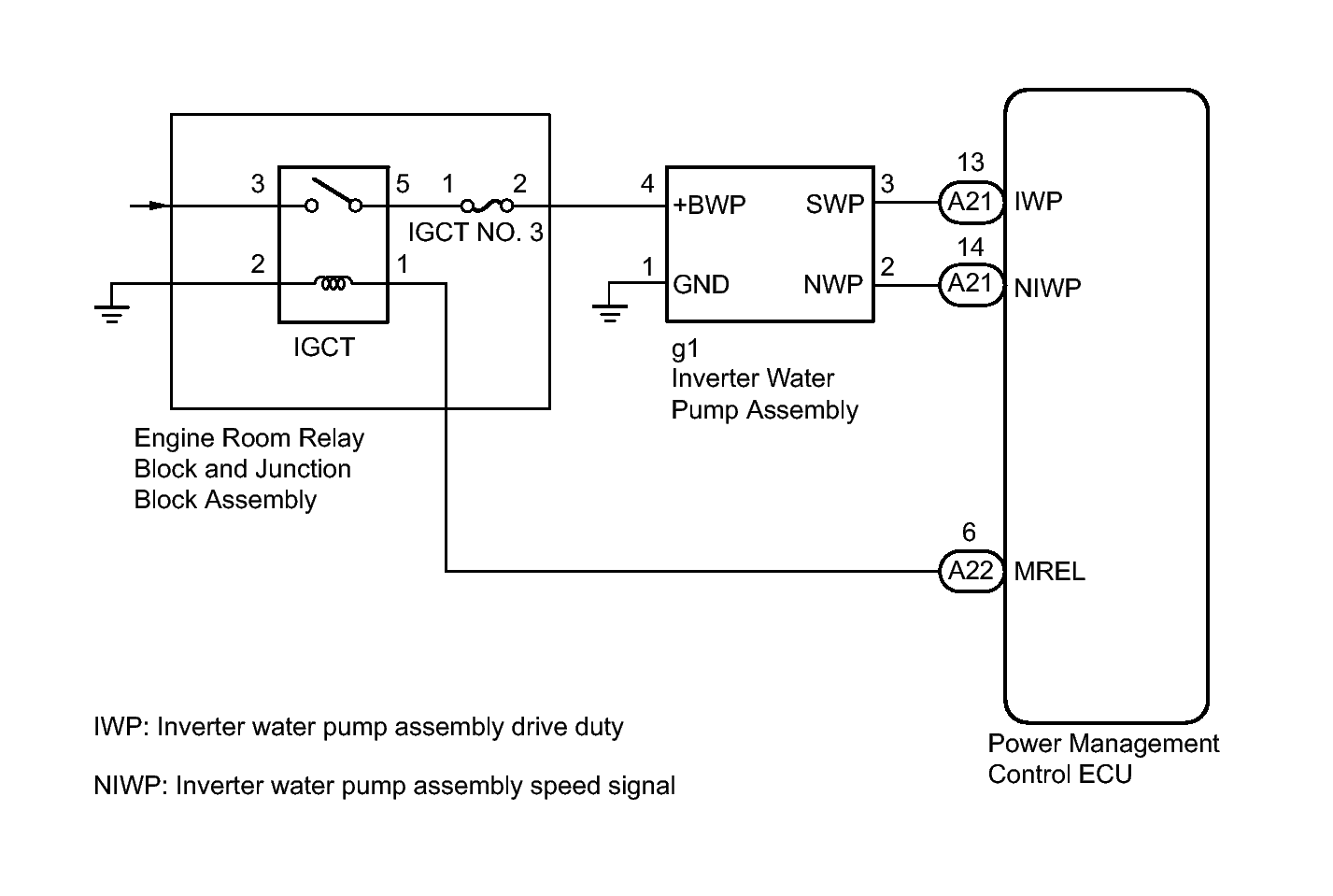

Fig 1: Inverter Water Pump Assembly Wiring Diagram

GTY369094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
