ECU Power Source Circuit [08/2015 - ]: Wiring Diagram

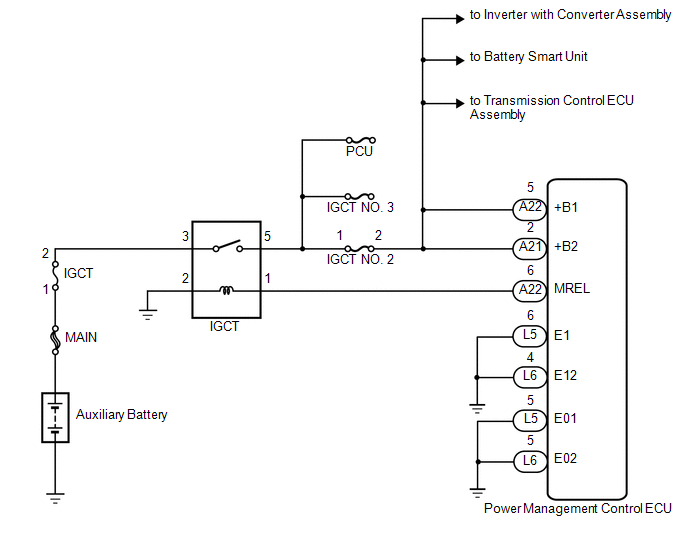

Fig 1: ECU Power Source Wiring Diagram

GTY475634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
