Components [08/2015 - ]: Illustration

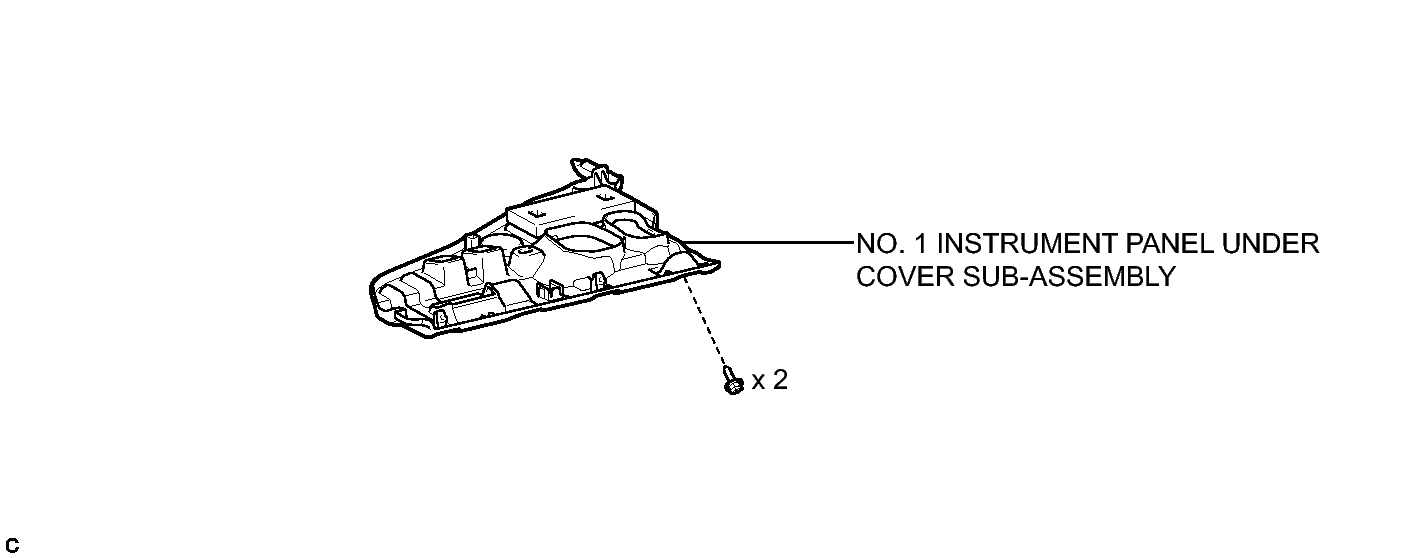

Fig 1: Identifying Brake Booster Replacement Components (1 Of 4)
GTY330027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

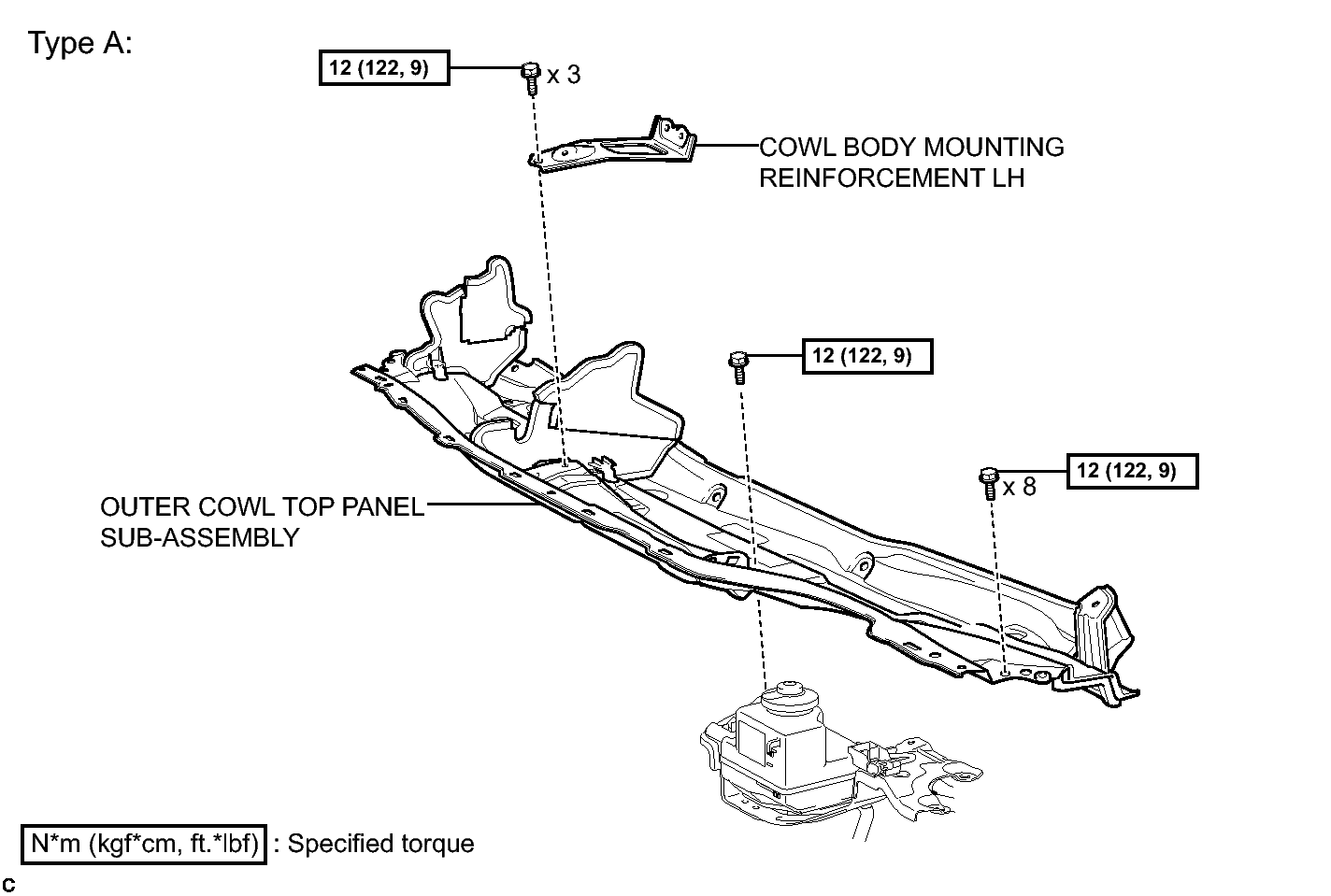

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 4)
GTY477330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

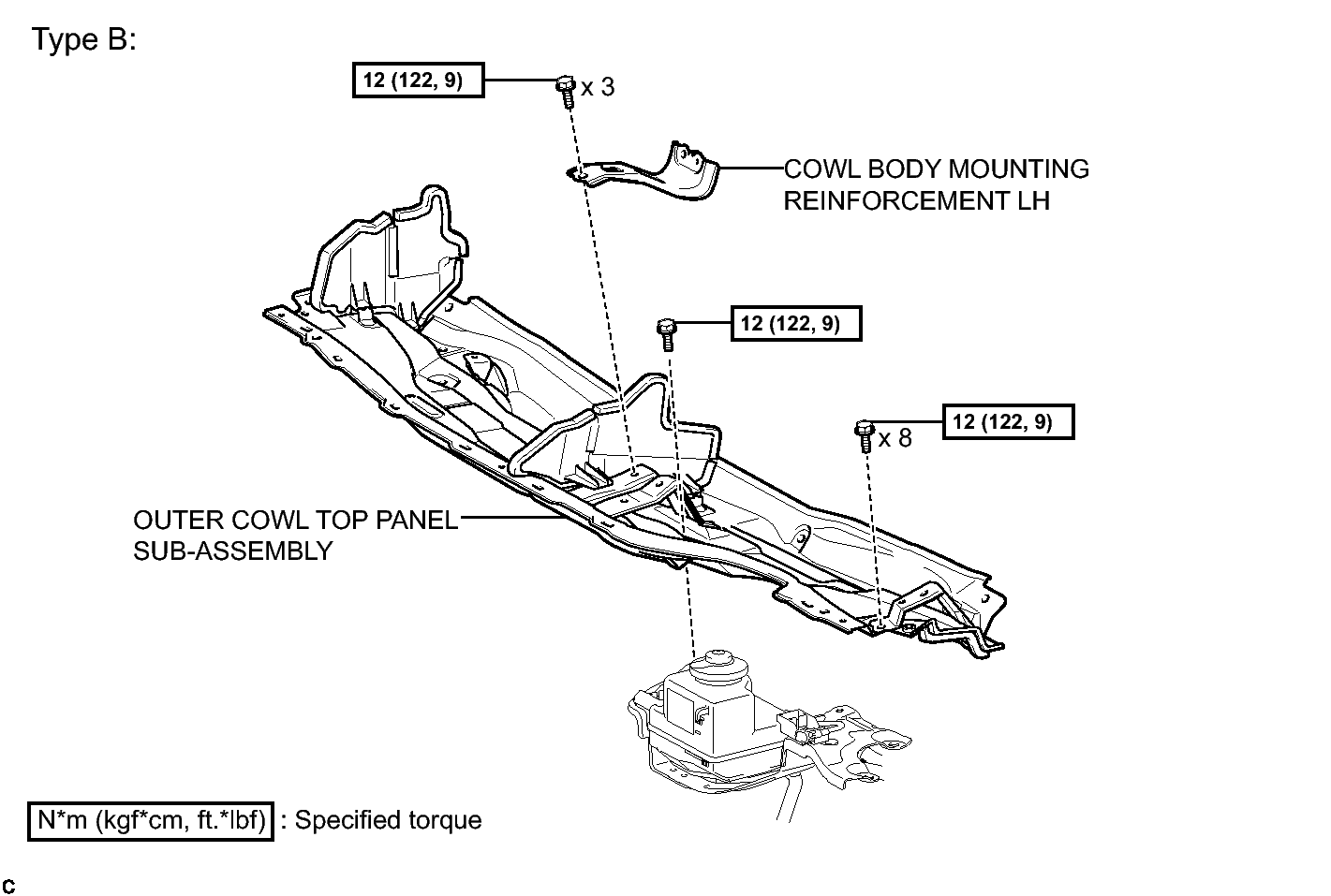

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 4)
GTY473594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

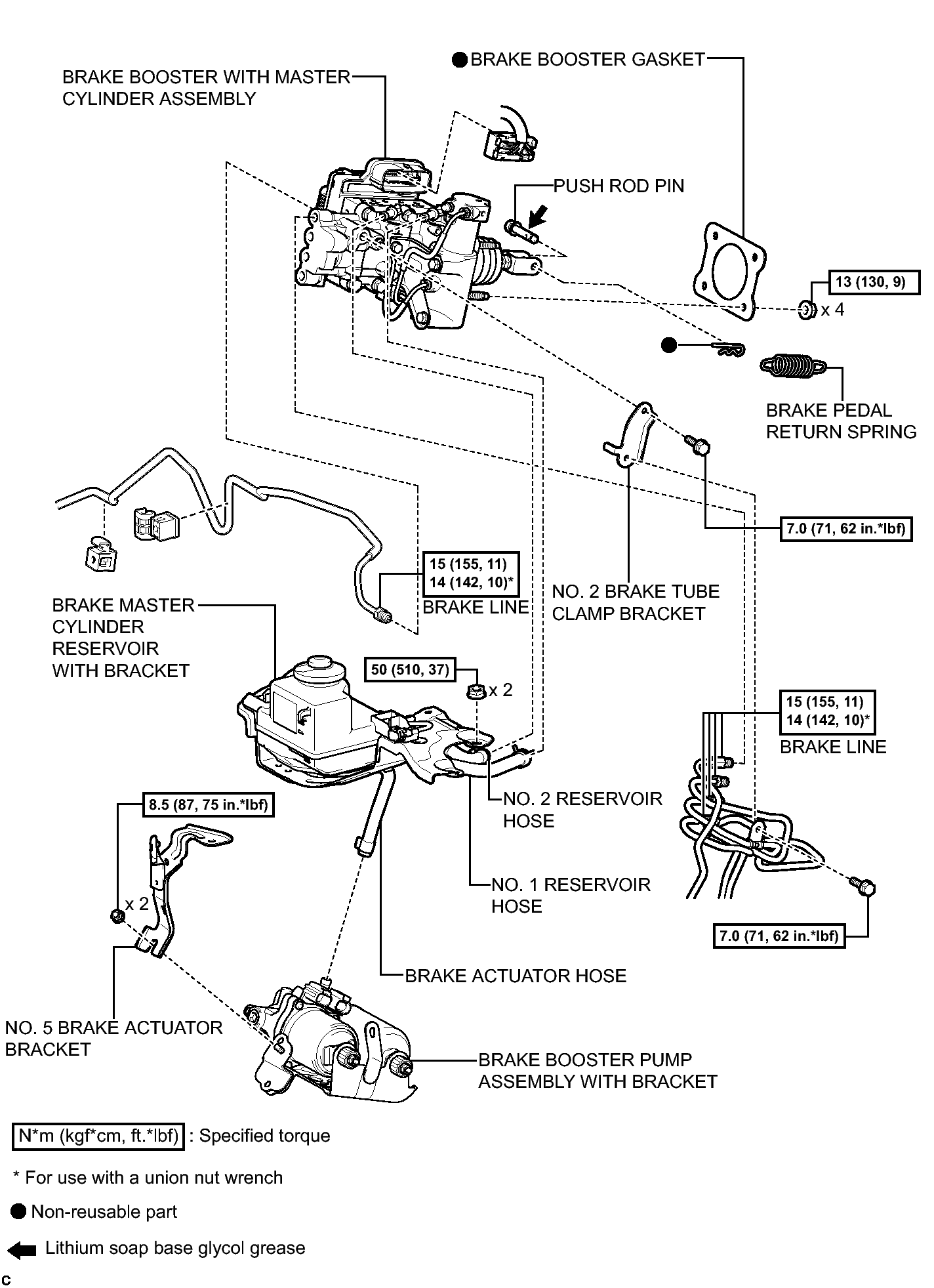

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (4 Of 4)
GTY475567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
