Components [08/2015 - ]: Illustration

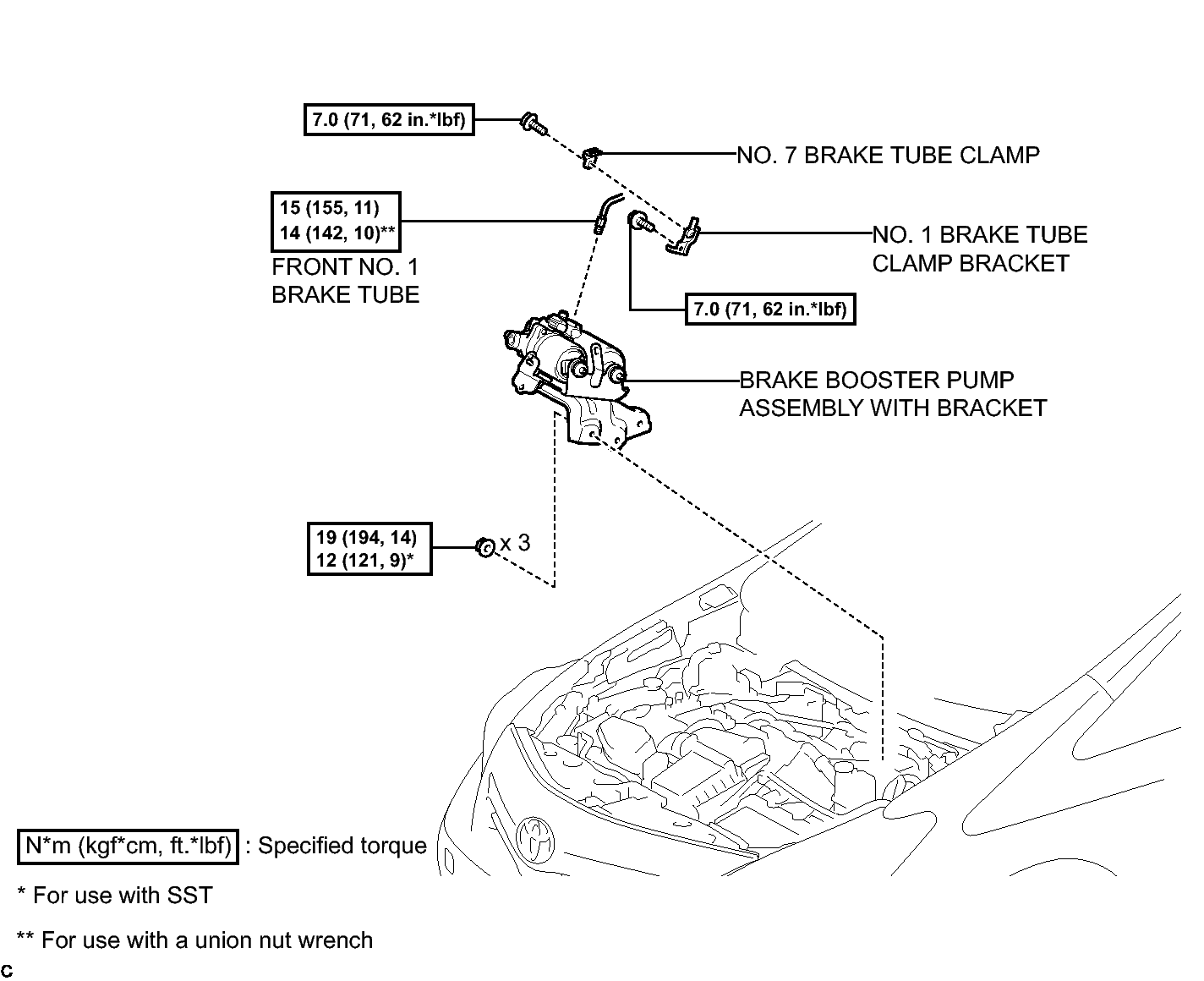

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (1 Of 2)
GTY472913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

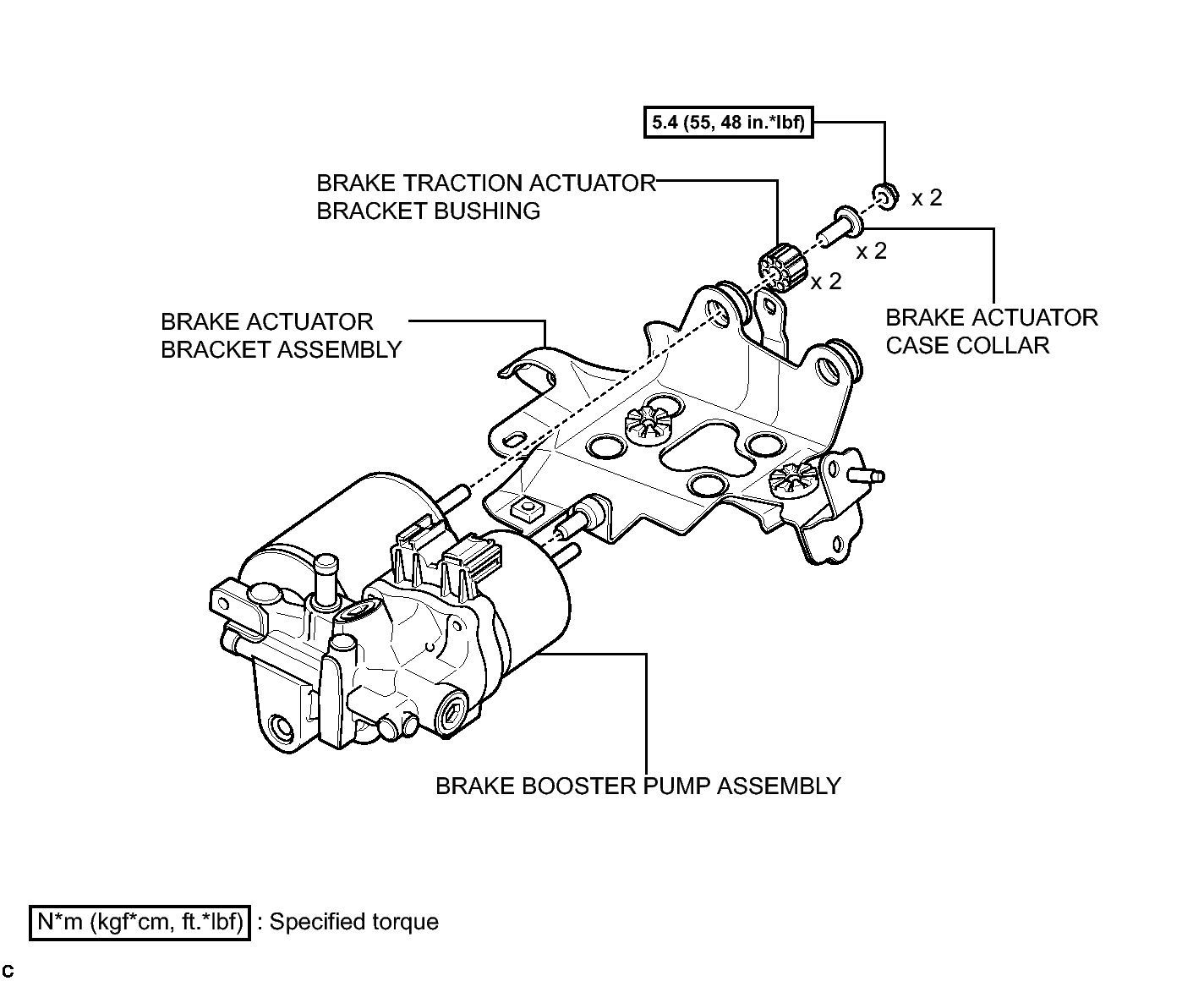

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (2 Of 2)
GTY344091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
