Components [08/2015 - ]: Illustration

Fig 1: Identifying Combination Meter Replacement Components (1 Of 4)
GTY333117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

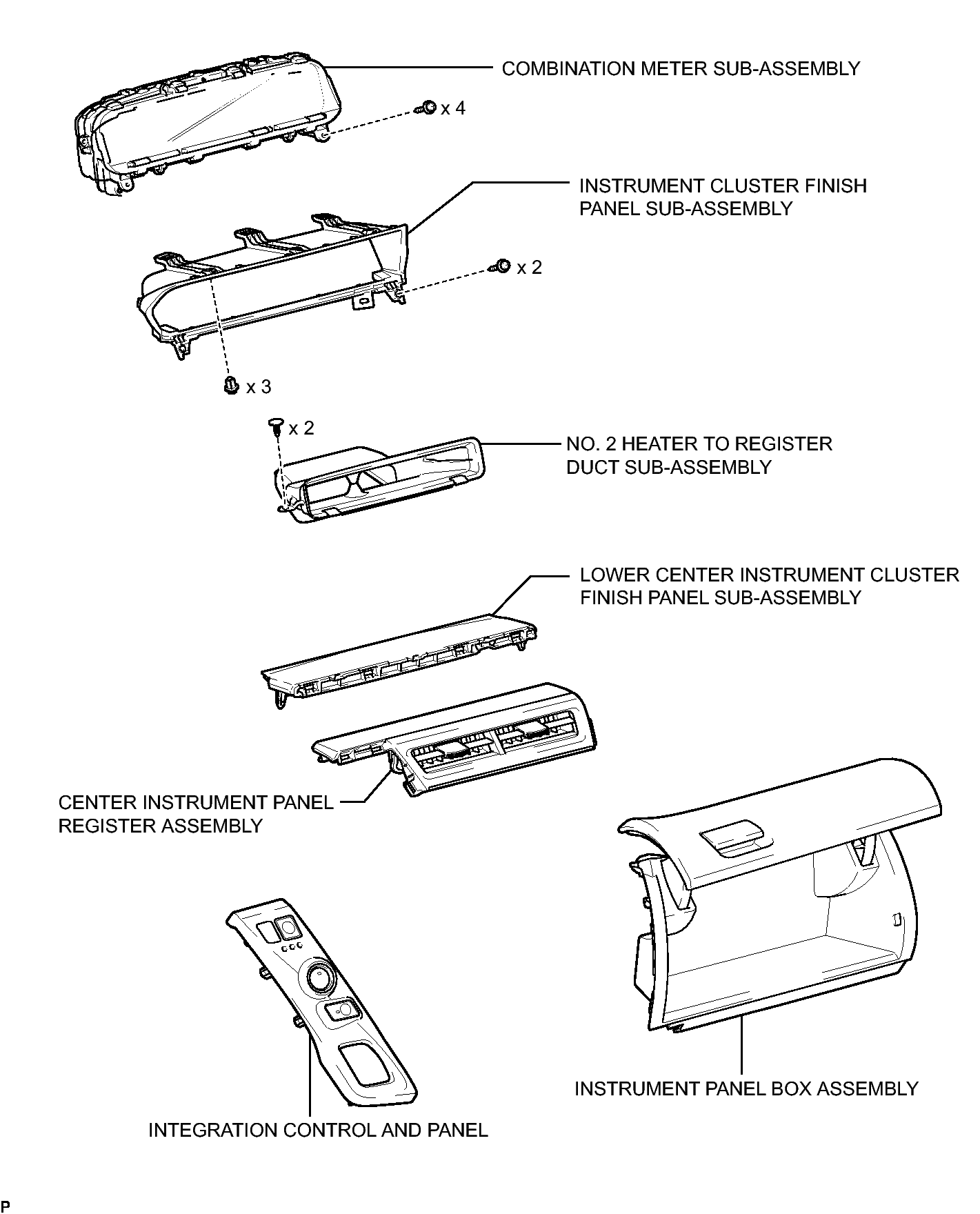

Fig 1: Identifying Combination Meter Replacement Components (2 Of 4)
GTY481763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

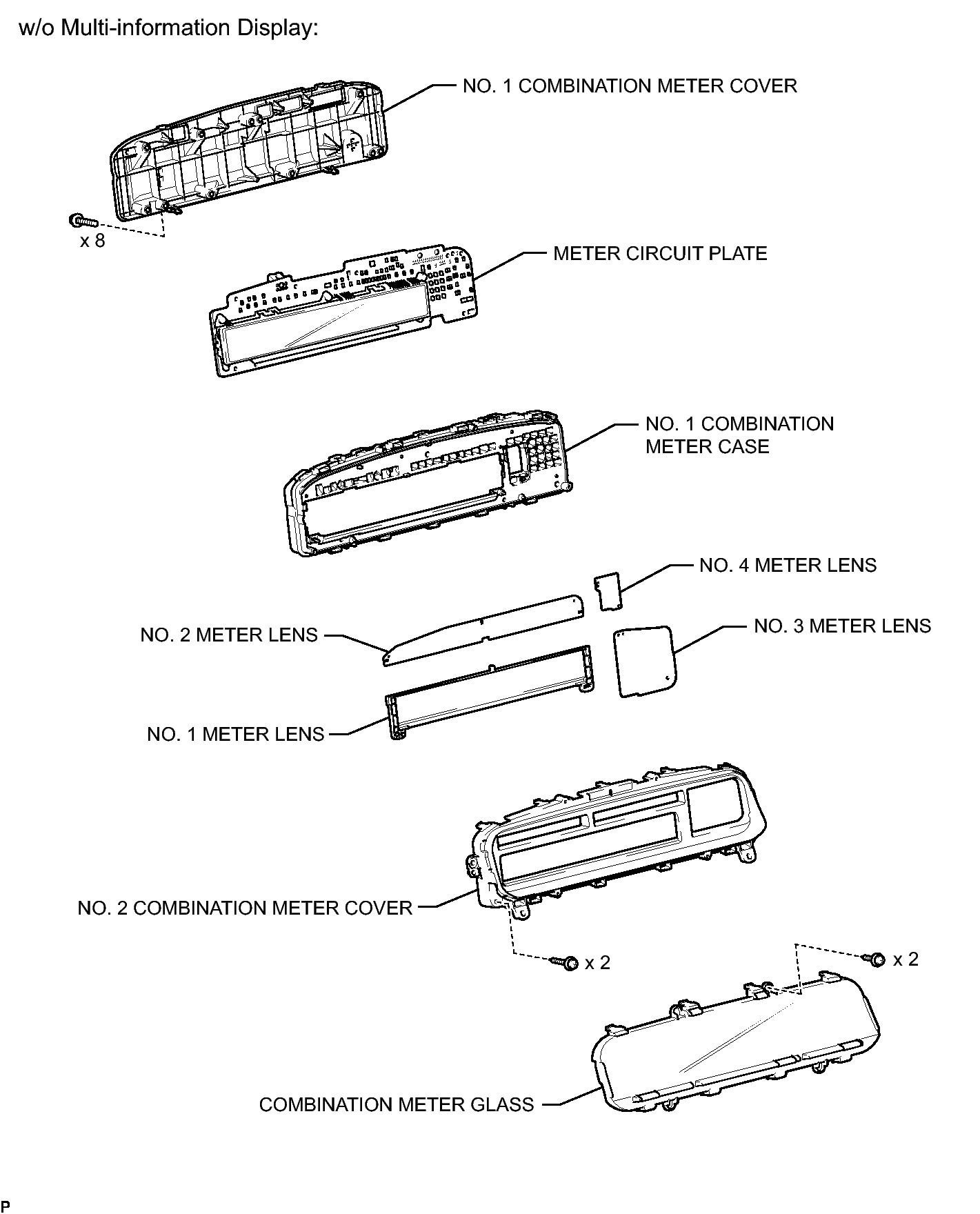

Fig 1: Identifying Combination Meter Replacement Components (w/o Multi-Information Display) (3 Of 4)
GTY540045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

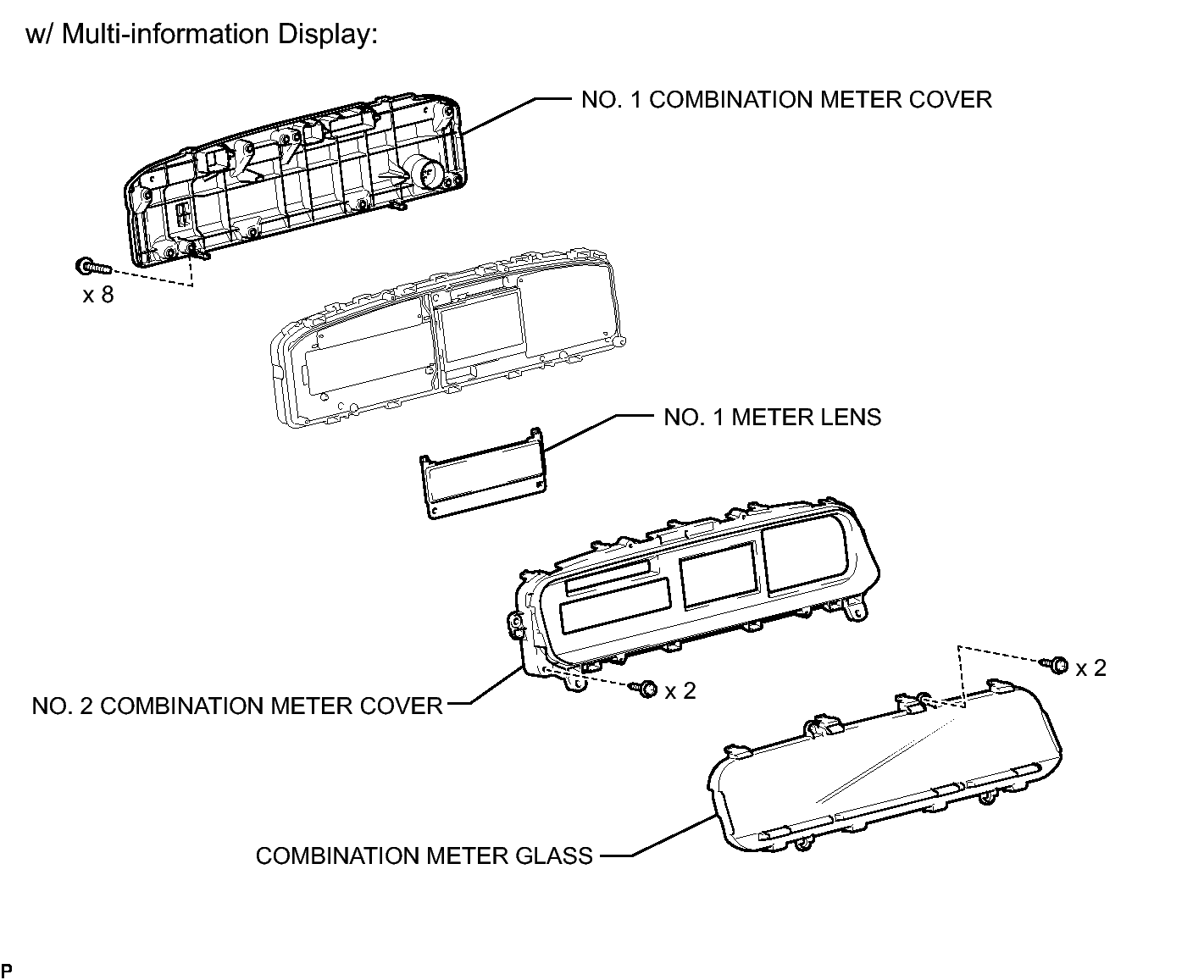

Fig 1: Identifying Combination Meter Replacement Components (w/ Multi-Information Display) (4 Of 4)
GTY479089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
