DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction [08/2015 - ]: Wiring Diagram

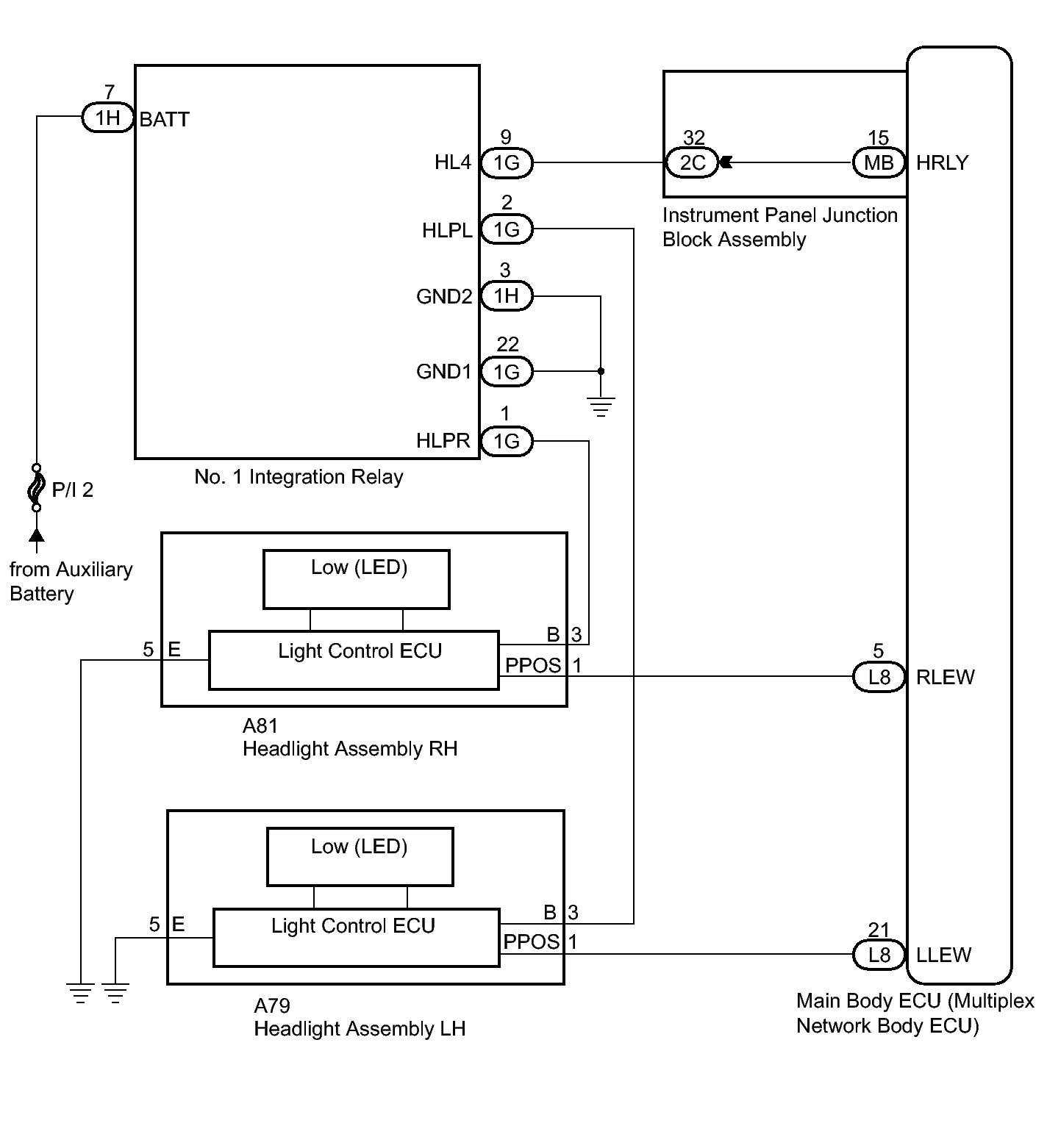

Fig 1: LED Headlight Assembly Wiring Diagram
GTY572473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
