Low Beam Headlight Circuit [08/2015 - ]: Wiring Diagram

  1. for Halogen Headlight

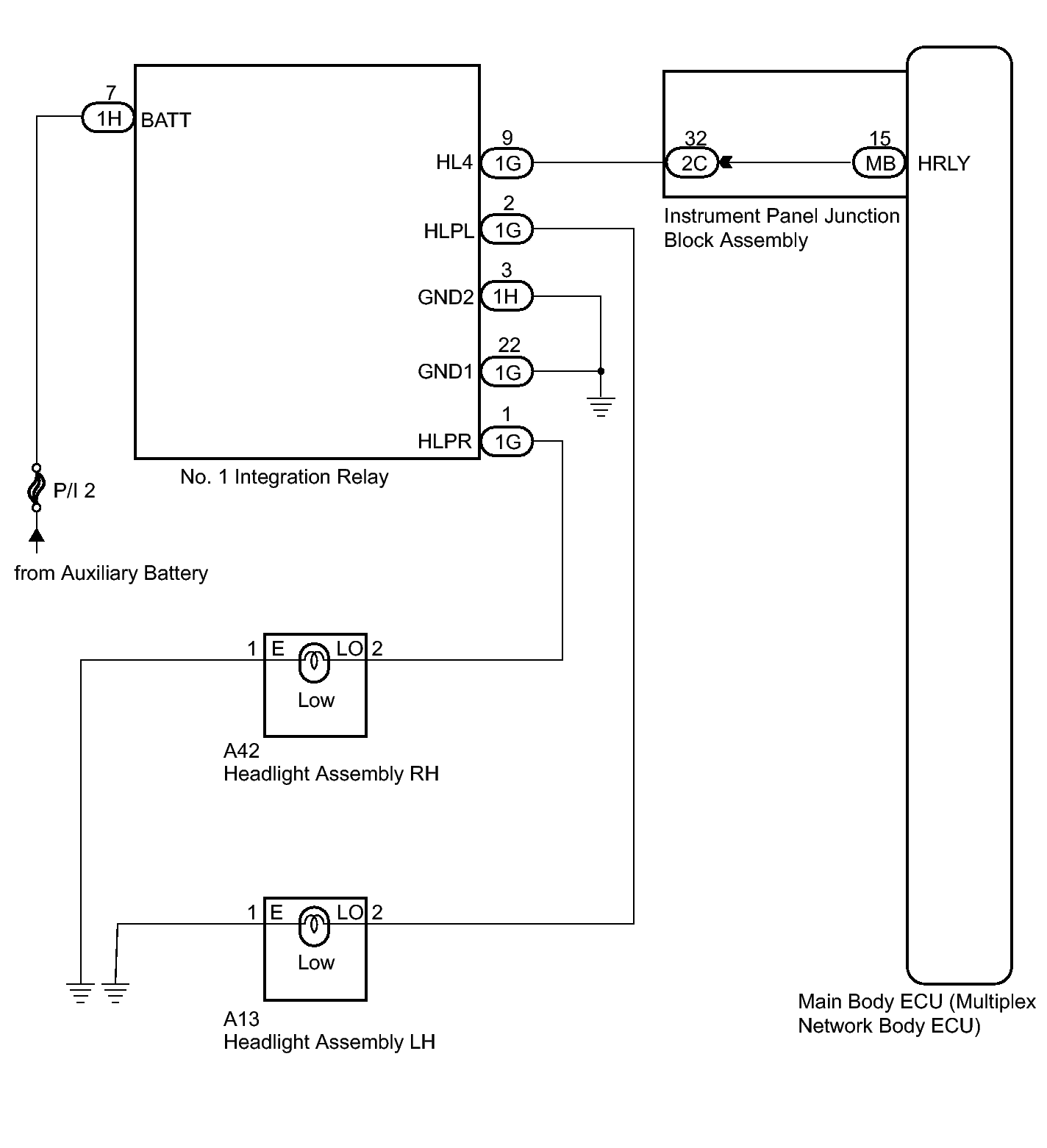

    Fig 1: Low Beam Headlight for Halogen Headlight
    GTY592786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for LED Headlight

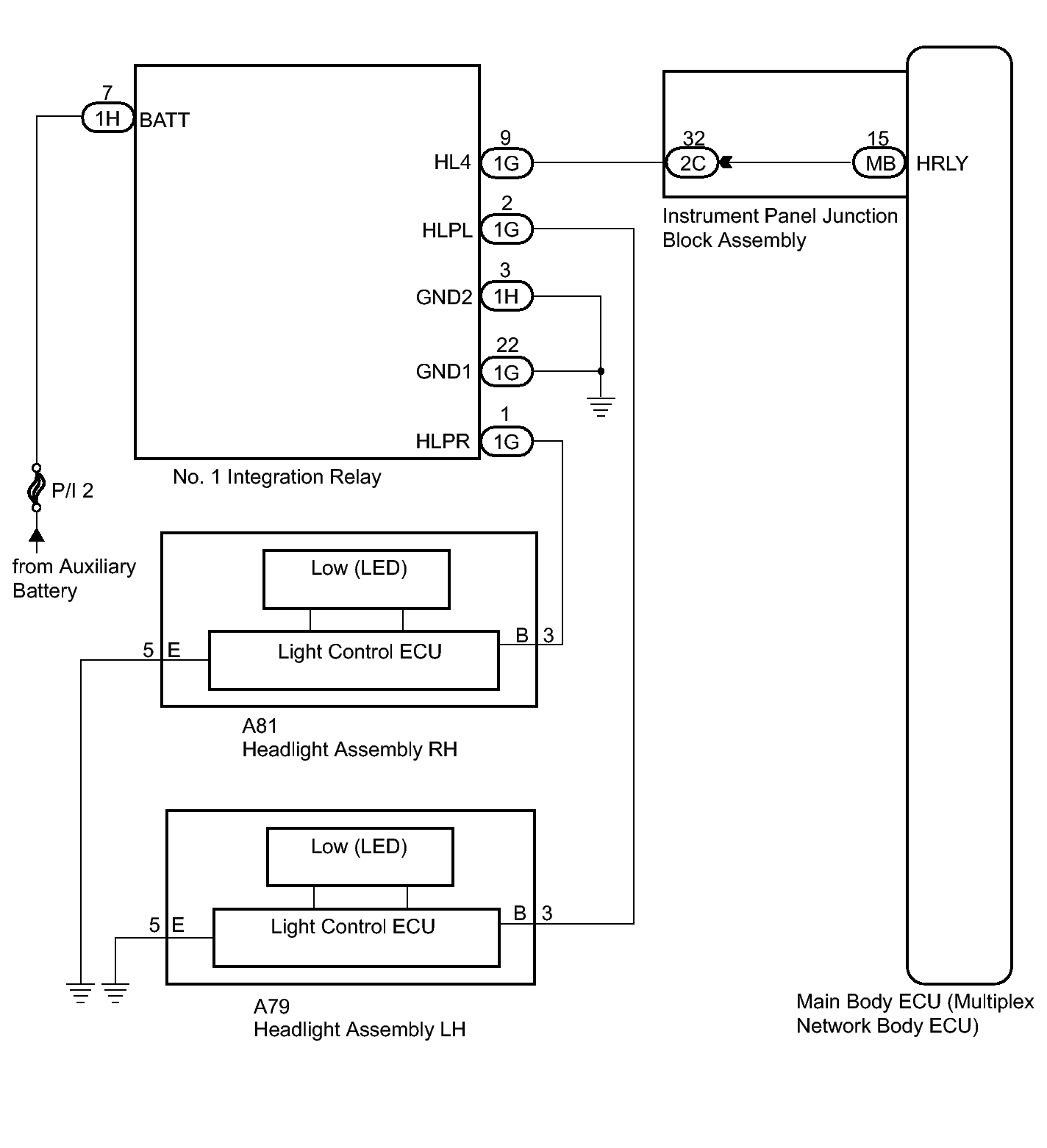

    Fig 2: Low Beam Headlight for LED Headlight
    GTY566475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
