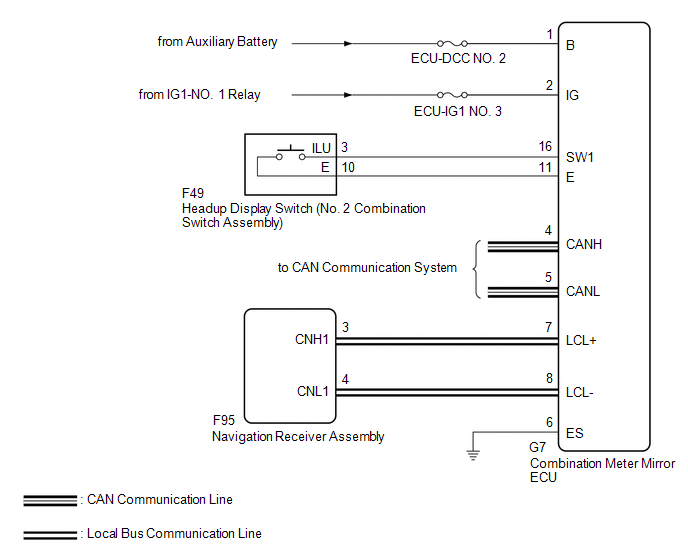

Home >> Toyota >> 2017 >> Prius Two Eco >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> HEADUP Display - Diagnostics - Introduction >> HEADUP Display System >> System Diagram [12/2018 - 08/2019] >> System Diagram [12/2018 - 08/2019]
