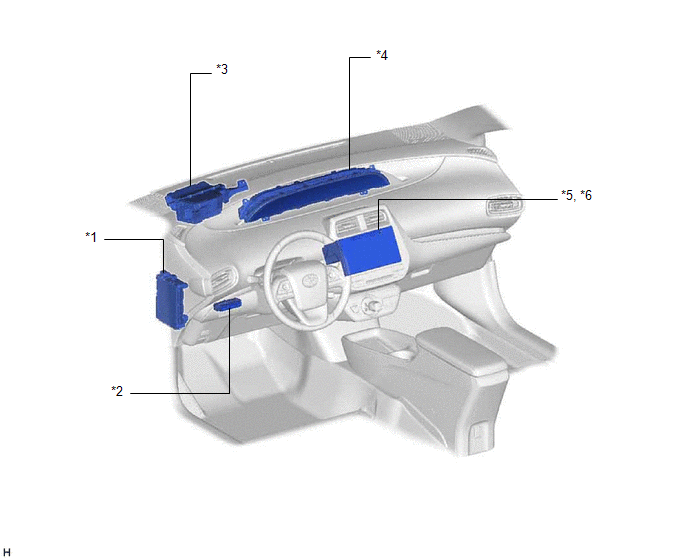

Parts Location [11/2015 - 11/2017]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE	*2	HEADUP DISPLAY SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)
*3	METER MIRROR SUB-ASSEMBLY - COMBINATION METER MIRROR ECU - COMBINATION DISPLAY - COMBINATION METER WIRE - NO. 2 COMBINATION METER MIRROR	*4	COMBINATION METER ASSEMBLY (METER CIRCUIT PLATE)
*5	NAVIGATION RECEIVER ASSEMBLY	-	-
