Installation [11/2015 - 12/2018]: Procedure

  1. INSTALL LOWER STEERING WHEEL BOSS COVER

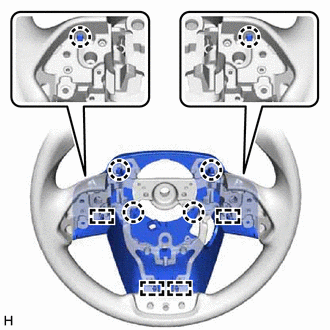

    1. GTY574746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 6 claws and 4 pins to install the lower steering wheel boss cover to the steering wheel sub-assembly.

  2. INSTALL STEERING PAD SWITCH ASSEMBLY

    See step  1

  3. INSTALL CRUISE CONTROL SWITCH WIRE
    1. Install the cruise control switch wire.
  4. INSTALL CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 1

  5. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  6. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  7. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.

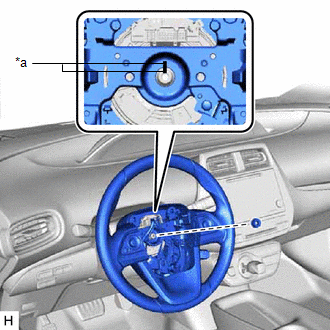

      GTY550347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Install the steering wheel assembly set nut.

      Torque: 50 N.m (510 kgf.cm, 37 ft./lbf)

    3. Connect 2 connectors to the spiral cable with sensor sub-assembly.

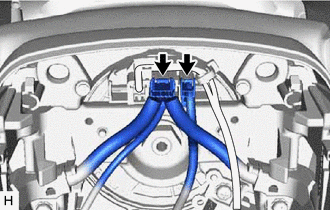

      GTY574749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CHECK STEERING WHEEL CENTER POINT
  9. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [11/2015 - ]
