Removal [11/2015 - 12/2018]: Procedure

1. Wait at least 2 minutes after turning the power switch off.
   NOTE:

   When the brake pedal is depressed or the door courtesy switch is turned on even if the power switch is off, the brake control system activates. Therefore do not depress the brake pedal or open/close the doors until the reservoir level switch connector is disconnected.

2. Disconnect the reservoir level switch connector with the parking brake applied.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the cable from the negative (-) auxiliary battery terminal.

   Refer to PROCEDURE - Step 2

4. Depress the brake pedal 40 times or more to return all the fluid in the accumulator back to the reservoir.
5. Check that the brake pedal cannot be further depressed.
6. Release the parking brake.

Refer to PROCEDURE - Step 1

1. Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

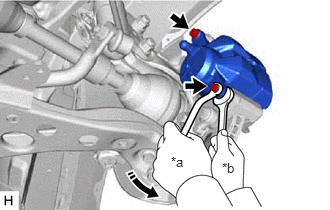

1. Hold the 2 front disc brake cylinder slide pins and remove the 2 bolts and front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

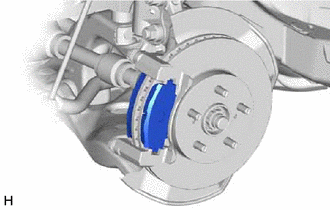

1. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.

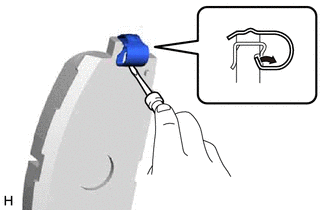

2. Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

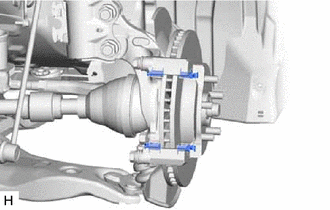

1. Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting.
   NOTE:

   Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

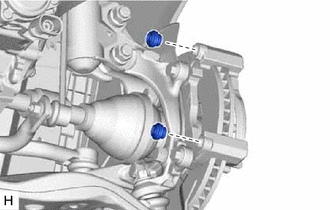

1. Remove the 2 front disc brake cylinder slide pins from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front disc brake cylinder slide pin (lower side).
   NOTE:

   Do not damage the front disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

1. Remove the 2 front disc brake bushing dust boots from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

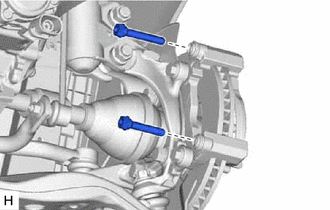

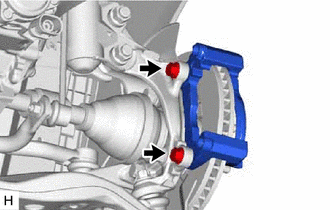

1. Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

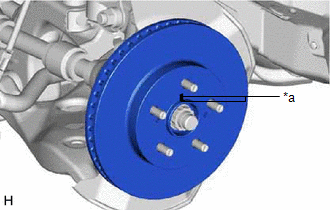

1. Put matchmarks on the front disc and the front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the front disc.
