Removal [11/2015 - 12/2018]: Procedure

  1. PRECAUTION
    1. Change the grille shutter control mode to maintenance mode.

      Refer to INITIALIZATION [11/2015 - ]

      NOTE:

      Make sure to change the grille shutter control mode to maintenance mode to prevent the grill shutter from opening or closing when the power switch is off.

  2. REMOVE RADIATOR SUPPORT OPENING COVER
    1. Remove the 5 clips.
      GTY571142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the radiator support opening cover as shown in the illustration.
      GTY550914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  3. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly.
      GTY542047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    2. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
      GTY588959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pin Hold Clip
      *a 90 deg
      Remove in this Direction (1)
      Remove in this Direction (2)

      HINT:

      Use the same procedure for the RH side and LH side.

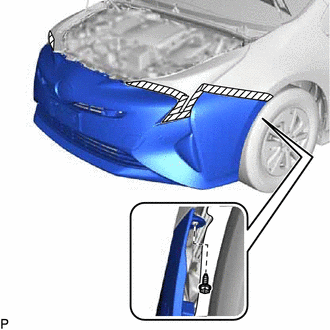

    3. Remove the screw.
      GTY571135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

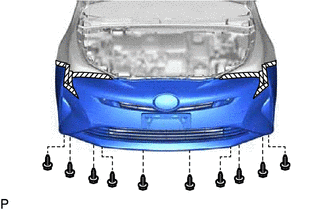

    4. Remove the 10 screws.
      GTY571132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

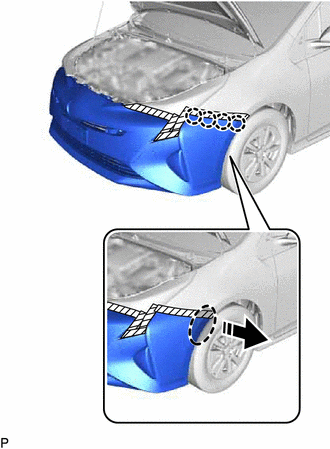

    5. Disengage the 4 claws as shown in the illustration.
      GTY562430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    6. w/ Fog Light:
      1. Pull back the side of the front bumper assembly and disconnect the connector.
        GTY571770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
        NOTE:

        Do not apply excessive force when pulling back the front bumper assembly.

        HINT:

        Use the same procedure for the RH side and LH side.

    7. w/ Intuitive Parking Assist System:
      GTY576040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intuitive Parking Assist System
      *B w/ Toyota Safety Sense P
      1. Disconnect the connector.
    8. w/ Toyota Safety Sense P:
      1. Disconnect the connector.

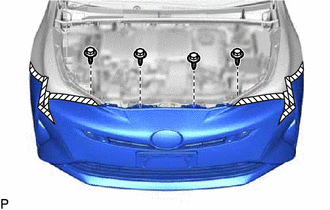

    9. Remove the 4 bolts.
      GTY571128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

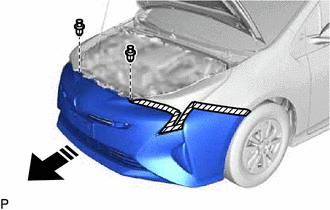

    10. Remove the 2 clips and front bumper assembly as shown in the illustration.
      GTY609320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
