Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [11/2015 - 11/2017] , or refer to REMOVAL [11/2017 - 12/2018]

  2. REMOVE NO. 2 CLEARANCE WARNING BUZZER

    See step  3

  3. REMOVE CLEARANCE WARNING ECU ASSEMBLY

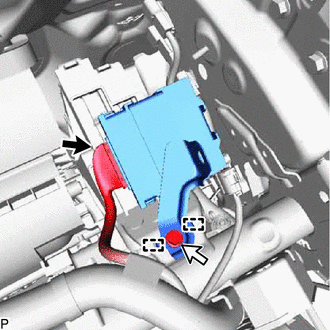

    1. Disconnect the connector.
      GTY564425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the 2 guides to remove the clearance warning ECU assembly.
