Removal [11/2015 - 08/2019]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 14 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 14 [11/2017 - 12/2018] , or refer to PROCEDURE - Step 14 [12/2018 - 08/2019]

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 15 [11/2017 - 12/2018] , or refer to PROCEDURE - Step 15 [12/2018 - 08/2019]

  3. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

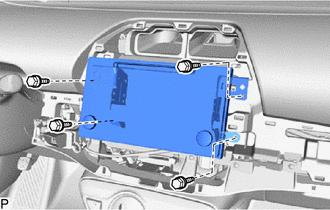

    1. Remove the 4 bolts.
      GTY598582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

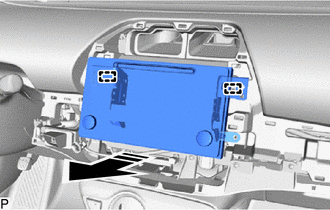

    2. Pull the radio receiver assembly with bracket toward the rear of the vehicle to disengage the 2 guides.
      GTY568186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio receiver assembly with bracket.
  4. REMOVE NO. 1 RADIO BRACKET

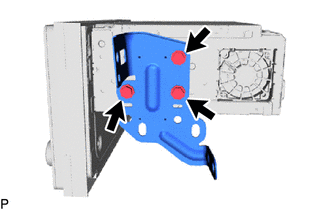

    1. Remove the 3 screws and No. 1 radio bracket.
      GTY562106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 RADIO BRACKET

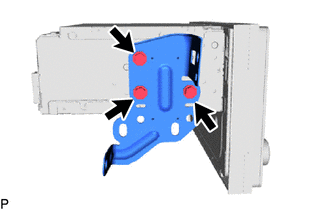

    1. Remove the 3 screws and No. 2 radio bracket.
      GTY562104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
