DTC P1CFA-12: IGB Signal Circuit Short to Auxiliary Battery [11/2015 -]: Wiring Diagram

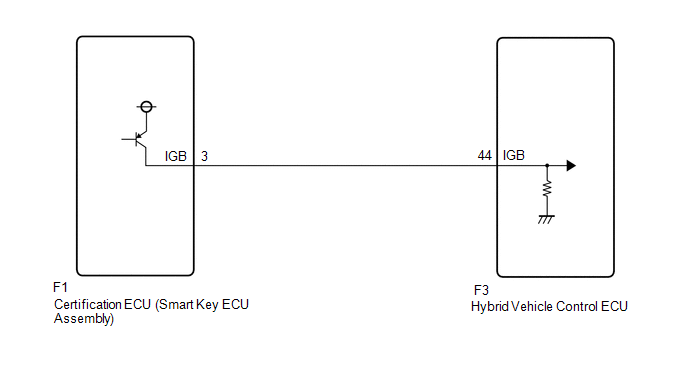

GTY584812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
