System Diagram [07/2020 - ]

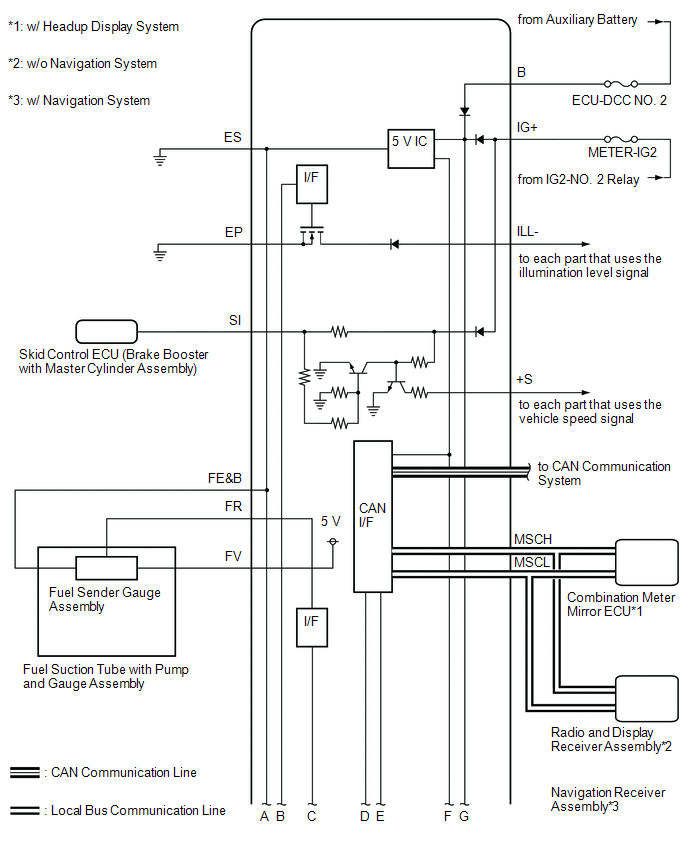

Fig 1: Meter / Gauge System Diagram (1 Of 3) (07/2020 -)
GTY983469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

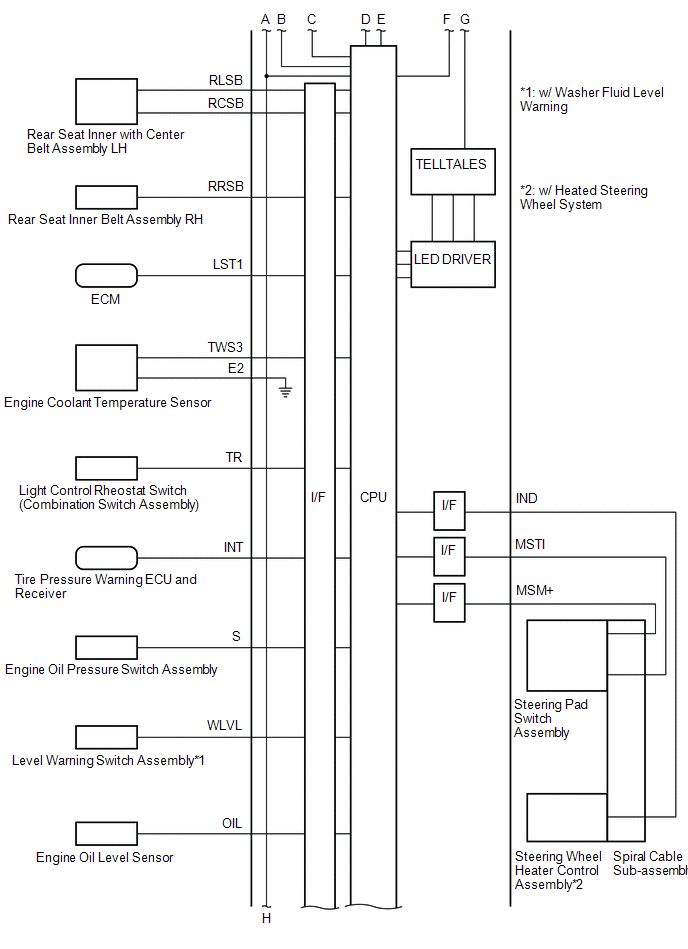

Fig 2: Meter / Gauge System Diagram (2 Of 3) (07/2020 -)
GTY983463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

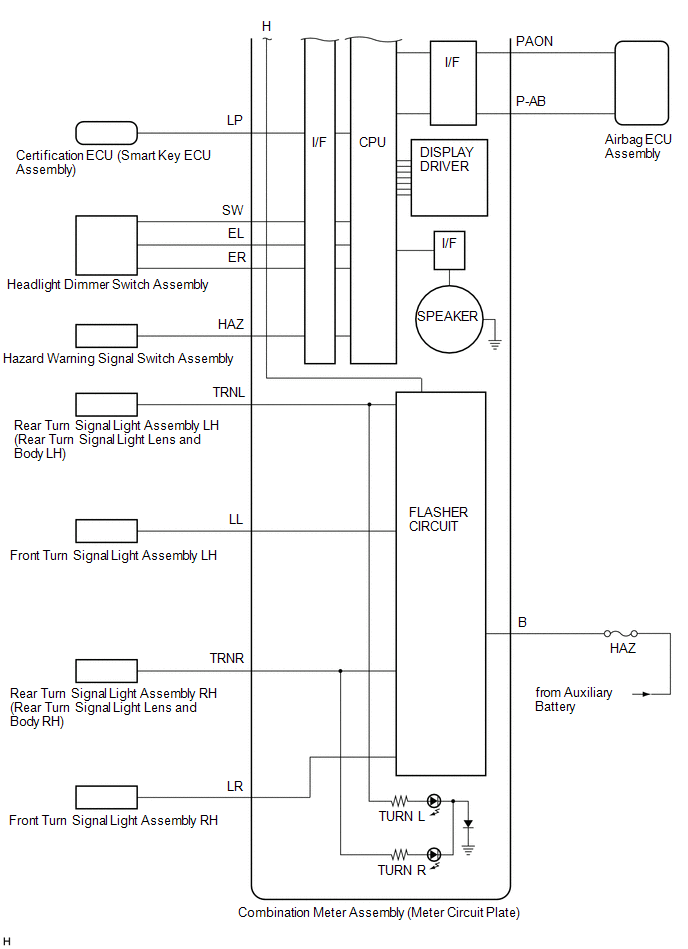

Fig 3: Meter / Gauge System Diagram (3 Of 3) (07/2020 -)
GTY985266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
