Components [09/2016 - ]

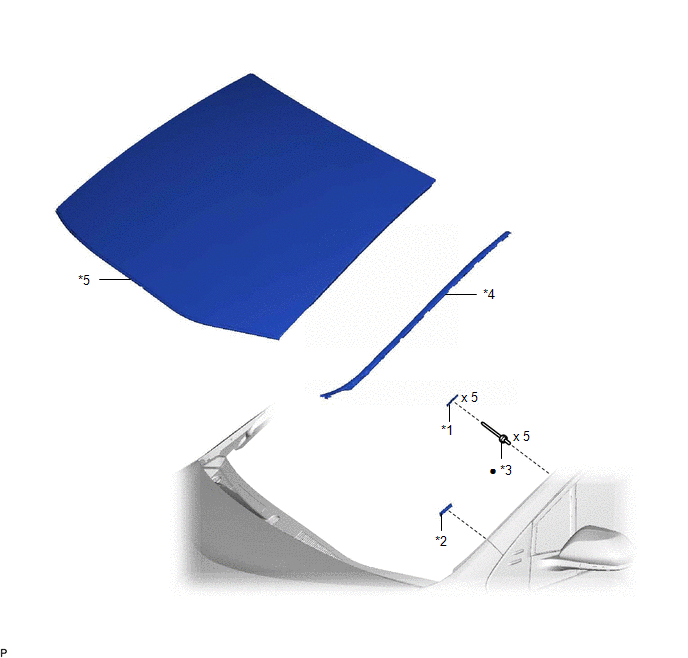

Fig 1: Windshield Outside Moulding Replacement Components
GTY564236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP *2 NO. 2 WINDSHIELD OUTSIDE MOULDING CLIP
*3 NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP *4 WINDSHIELD OUTSIDE MOULDING
*5 WINDSHIELD GLASS SUB-ASSEMBLY - -
• Non-reusable part - -
